Eaton E57-12GS02-D4

Name: Eaton E57-12GS02-D4
Brand: Eaton
SKU: CS4872647
Price: 152.81 USD
Availability: OutOfStock

SKU: CS4872647MPN: E57-12GS02-D4UPC/EAN: 782116071715

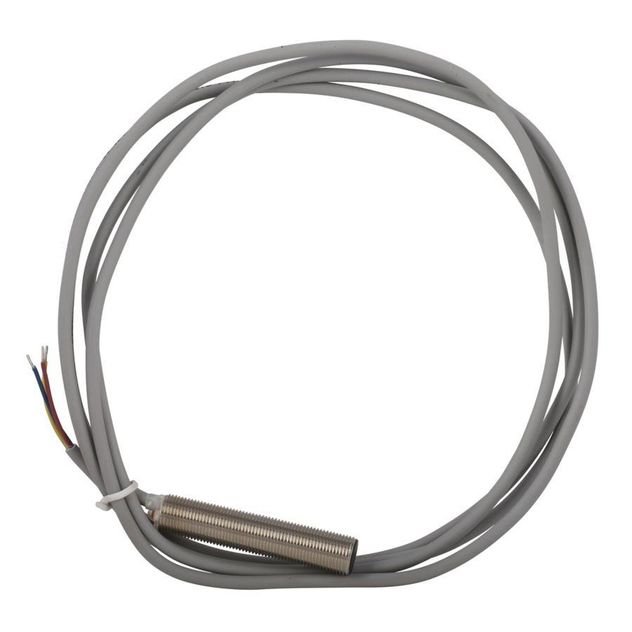

Eaton E57 inductive proximity sensor

Eaton E57-12GS02-D3, E57-12GS02-D4, E57-12GS02-D5, E57-12GS02-DDB

Product Details

Eaton E57 Two-Wire Series Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, dist. 2 mm, 2-Wire DC, NO, 100 mA at 30 Vdc, 13.1 Ft. (4m) Cable, 10-30 Vdc input, \<2% accuracy, Short circuit protected, Shielded, 13.1 Ft. (4m)

Attributes

Accuracy	< 2%
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	13.1 ft (4 m) cable
Contact Configuration	2-wire DC, NO
Contact Rating	100 mA at 30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	100 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
