Eaton E57-08GE06-C1DB

Name: Eaton E57-08GE06-C1DB
Brand: Eaton
SKU: CS4872591
Price: 134.01 USD
Availability: OutOfStock

SKU: CS4872591MPN: E57-08GE06-C1DBUPC/EAN: 786685535173

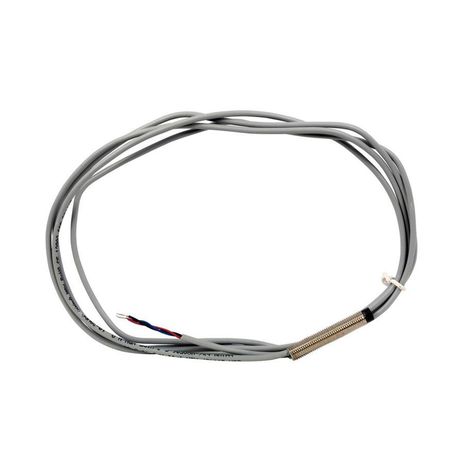

Eaton E57 inductive proximity sensor

Eaton E57-08GE06-C, E57-08GE06-C1, E57-08GE06-C1DB

Product Details

Eaton E57 Small dia Series Inductive Proximity Sensor, 0.315 dia, Straight, Sensor dist: 6 mm, 100 mA max DC, NPN Open Collector, NC, 100 mA at 30 Vdc, 4 Pin M12 Connector, 10-30 Vdc input, \< 1% accuracy, Short circuit protected

Attributes

Accuracy	< 1%
Actuator Function	Unshielded
Connection	4-pin M12 connector
Contact Configuration	NPN open collector, NC
Contact Rating	100 mA at 30 Vdc
Enclosure Material	Nickel plated brass
Environmental Rating	IP67, IP69K
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	100 mA
Operating Temperature Max	140 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	32 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
