Eaton E57-08GE03-C1DB
SKU: CS4872581MPN: E57-08GE03-C1DBUPC/EAN: 786685535111

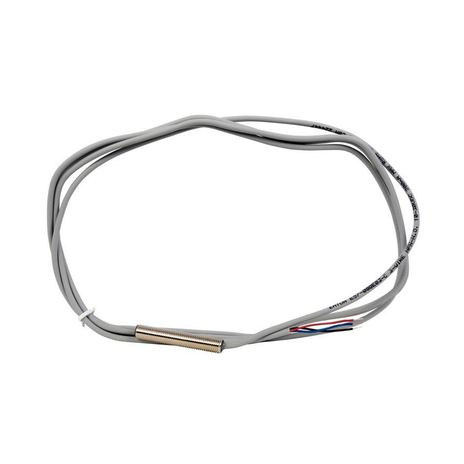

Eaton E57 inductive proximity sensor
Contact us for pricing and availability
Product Details
Eaton E57 Small Diameter Series Inductive Proximity Sensor Enclosure, 0.315 dia, dist 3 mm, NPN Open Collector, NC, 100 mA at 30 Vdc, 4 Pin M12 Connector, 10-30 Vdc input, \<1% accuracy, Short circuit protected, Extended Range Shielded
Attributes
| Accuracy | < 1% |
| Actuator Function | Extended range shielded |
| Connection | 4-pin M12 connector |
| Contact Configuration | NPN open collector, NC |
| Contact Rating | 100 mA at 30 Vdc |
| Enclosure Material | Nickel plated brass |
| Environmental Rating | IP67, IP69K |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output status: red |
| Maximum Dc Current | 100 mA |
| Operating Temperature Max | 140 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 32 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Short circuit protected |
| Sensor Type | Inductive proximity |
| Series | E57 |
Specifications
| SKU | CS4872581 |
|---|---|
| MPN | E57-08GE03-C1DB |
| UPC/EAN | 786685535111 |
