Eaton E55CAL18T110

Name: Eaton E55CAL18T110
Brand: Eaton
SKU: CS4872517
Price: 248.89 USD
Availability: OutOfStock

SKU: CS4872517MPN: E55CAL18T110UPC/EAN: 782113888248

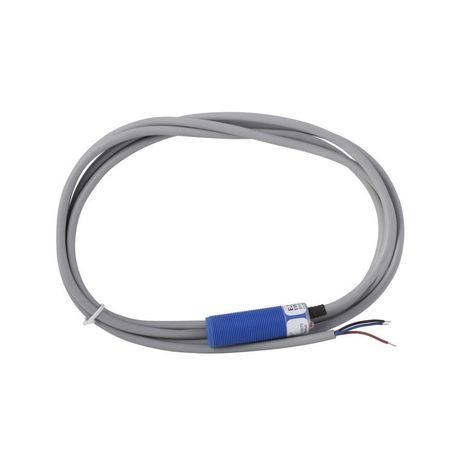

Eaton 55 series photoelectric sensor

Product Details

E55 Tubular Plastic Body Inductive Proximity Sensor Enclosure, dist5 mm, NPN Open Collector, NO, 200 mA at 30 Vdc, 6.6 Ft. (2m) Cable, 10-30 Vdc input, \<1% accuracy, Reverse polarity and short circuit protected, Shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 1%
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	NPN open collector, NO
Contact Rating	200 mA at 30 Vdc
Enclosure Material	Polybutylene teraphtalate (PPBT)
Environmental Rating	NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 13, IP66
Input Voltage	10-30 Vdc
Led Indicator	Output status
Maximum Dc Current	200 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity and short circuit protected
Sensor Type	Inductive proximity
