Eaton E51SAL6P12

SKU: CS4872411MPN: E51SAL6P12UPC/EAN: 782113446646

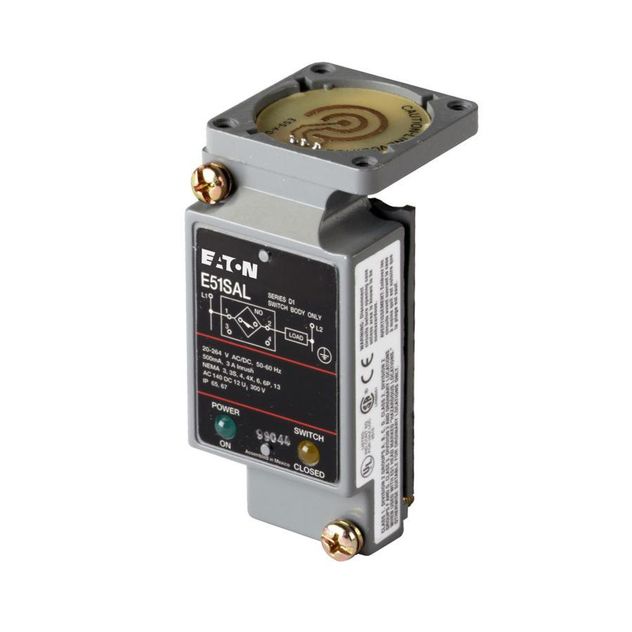

Eaton E51 NEMA limit switch inductive proximity sensor

Eaton E51ALC1P3, E51ALP1, E51ALP120, E51ALP1P3, E51ALP2, E51ALP2P3, E51ALS1, E51ALS120, E51ALS16P, E51ALS16P12, E51ALS16P30, E51ALS16PC, E51ALS16PU, E51ALS16PU12, E51ALS1P3
Contact us for pricing and availability

Product Details

Eaton E51 NEMA limit switch inductive proximity sensor Factory Sealed Pre-Wired Switch Body, Die Cast Zinc enclosure, 500 mA max AC, 500 mA max DC, 2-Wire AC, NO, 500 mA AC/DC Solid State Output, 12 Ft. (3.7m) Cable

Attributes

Cable Type SOOW-A
Connection 12 ft (3.7 m) cable
Contact Configuration 2-wire AC, NO
Contact Rating 500 mA AC/DC Solid State Output
Enclosure Material Die cast zinc
Environmental Rating NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
Input Voltage 20-264 Vac/dc
Led Indicator Output status: yellow Power on: green
Maximum Ac Current 500 mA
Maximum Dc Current 500 mA
Operating Temperature Max 158 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min -13 FAH
Operating Temperature Min Uom FAH
Protection Short circuit protected

Specifications

SKUCS4872411
MPNE51SAL6P12
UPC/EAN782113446646
