Eaton E51NLT5
SKU: CS4872339MPN: E51NLT5UPC/EAN: 782113130699

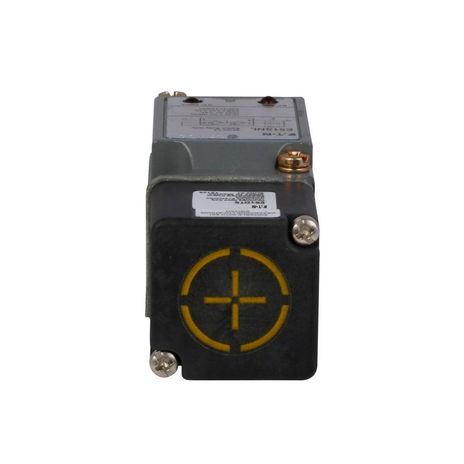

Eaton E51 NEMA limit switch inductive proximity sensor
Contact us for pricing and availability
Product Details
Eaton E51 NEMA limit switch inductive proximity sensor, Inductive Proximity Sensor, E51, Top Sensing, Unshielded, Output ON (1 LED per output), Screw Terminals, 600 mA, Complementary NPN open collector, 10-30 Vdc
Attributes
| Actuator Function | Unshielded |
| Connection | Screw terminal |
| Contact Configuration | Complementary NPN open collector |
| Contact Rating | 600 mA |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67 |
| Input Voltage | 10-30 Vdc |
| Led Indicator | Output ON (1 LED per output) |
| Maximum Dc Current | 600 mA |
| Operating Temperature Max | 158 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Protection | Auto reset |
| Series | E51 |
Specifications
| SKU | CS4872339 |
|---|---|
| MPN | E51NLT5 |
| UPC/EAN | 782113130699 |
