Eaton E50BNR16P
SKU: CS4871837MPN: E50BNR16PUPC/EAN: 782113728872

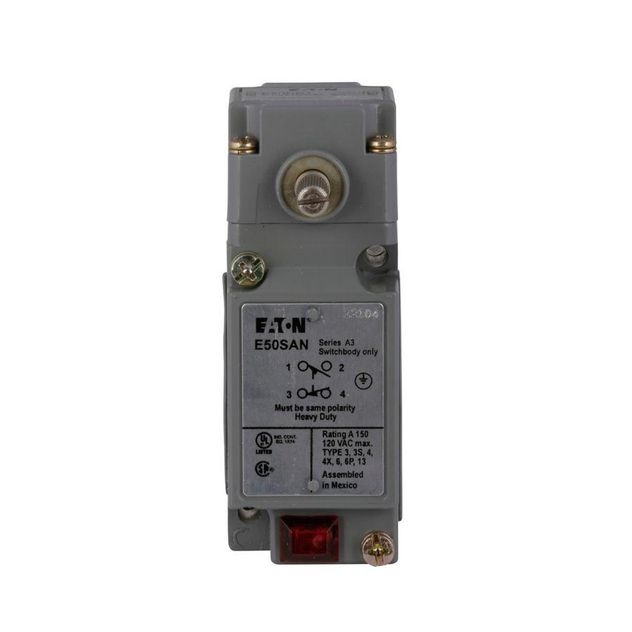

Eaton E50 NEMA heavy duty plug-in limit switch
Contact us for pricing and availability
Product Details
Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch,8ft.(2.5m)Cable,10A at 240Vac,1A at 125Vdc,SOOW-A,2NO-2NC,96ft,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,IP69K,Neon(120Vac),10A,1A,10°to201°F(-12°to94°C),Side Rotary
Attributes
| Accuracy | Refer to installation publication P15836 |
| Cable Type | SOOW-A |
| Connection | 8 ft (2.4 m) cable |
| Contact Configuration | 2 NO-2 NC |
| Contact Rating | 10A at 240Vac, 1A at 125Vdc |
| Enclosure Material | Die cast zinc |
| Environmental Rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K |
| Led Indicator | Neon (120 Vac) |
| Maximum Ac Current | 10 A |
| Maximum Dc Current | 1 A |
| Operating Temperature Max | 201 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | 10 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Side rotary |
Specifications
| SKU | CS4871837 |
|---|---|
| MPN | E50BNR16P |
| UPC/EAN | 782113728872 |
