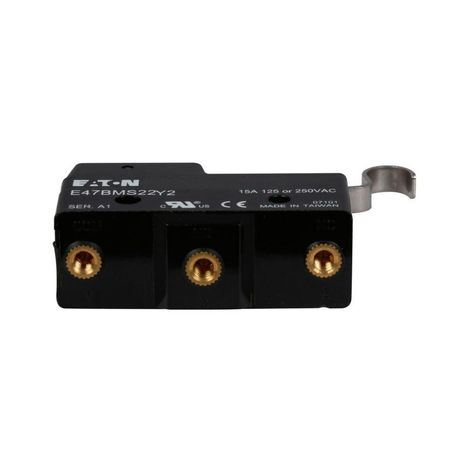

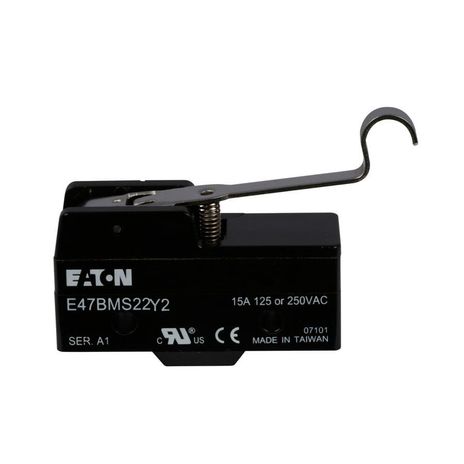

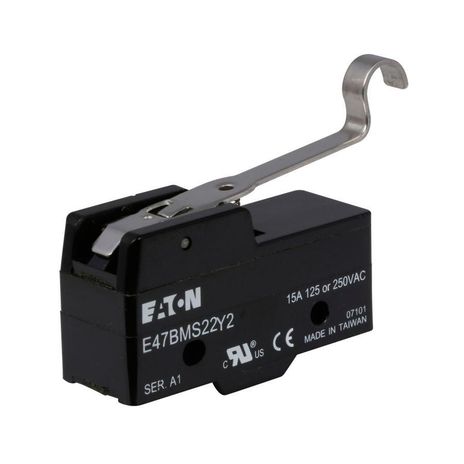

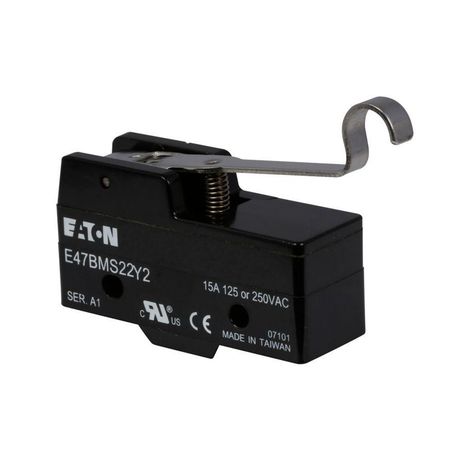

Eaton E47BMS22Y2
SKU: CS4871555MPN: E47BMS22Y2UPC/EAN: 786685416168
Eaton E47 limit switch
$26.88
UnitAvailable on backorder
Product Details
E47 Precision Limit Switch, Basic, Straight Lever, Mineral Filled Phenolic enclosure, 15A max AC, 15A max DC, SPDT, 15A at 125Vac / 15A at 14Vdc, Screw Terminals
Attributes
| Connection | Screw terminal |
| Contact Configuration | SPDT |
| Contact Rating | 15A at 125Vac / 15A at 14Vdc |
| Enclosure Material | Mineral filled phenolic |
| Environmental Rating | NEMA 1 |
| Maximum Ac Current | 15 A |
| Maximum Dc Current | 15 A |
| Operating Temperature Max | 176 FAH |
| Operating Temperature Max Uom | FAH |
| Operating Temperature Min | -13 FAH |
| Operating Temperature Min Uom | FAH |
| Switch Type | Straight lever |
| Type | E47 |
Specifications
| SKU | CS4871555 |
|---|---|
| MPN | E47BMS22Y2 |
| UPC/EAN | 786685416168 |
