Eaton E47BCC20

Name: Eaton E47BCC20
Brand: Eaton
SKU: CS4871515
Price: 158.35 USD
Availability: OutOfStock

SKU: CS4871515MPN: E47BCC20UPC/EAN: 782114666814

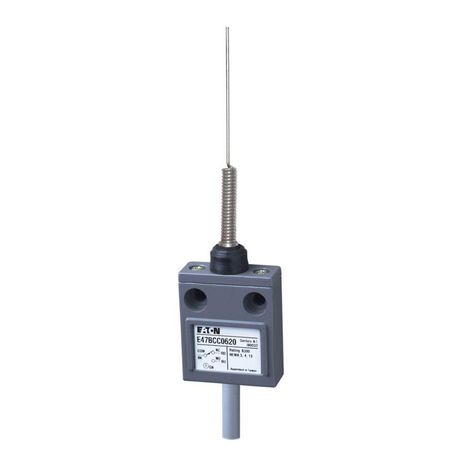

Eaton E47 limit switch

Eaton E47BCC05, E47BCC05P4, E47BCC06, E47BCC06P4, E47BCC07, E47BCC07S5, E47BCC08, E47BCC08P4, E47BCC11, E47BCC11P4, E47BCC12, E47BCC12P4, E47BCC13, E47BCC13P4, E47BCC15P4

Product Details

E47BCC Series Compact Pre-Wired Limit Switch, Wobble Stick, Die Cast Aluminum enclosure, 5A max AC, 5A max DC, SPDT, 5A at 240 Vac/5A at 14 Vdc, 10 Ft. ( 3m ) Cable, 10 Ft. ( 3m )

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Connection	10 ft (3 m) cable
Contact Configuration	SPDT
Contact Rating	5A at 240 Vac/5A at 14 Vdc
Enclosure Material	Die cast aluminum
Environmental Rating	NEMA 4, NEMA 6, NEMA 13, IP67
Maximum Ac Current	5 A
Maximum Dc Current	5 A
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Switch Type	Wobble stick
Type	E47
