Eaton E2FM3020B04
SKU: CS4868125MPN: E2FM3020B04Alternate Part #: 6609C77G42UPC/EAN: 782114804124

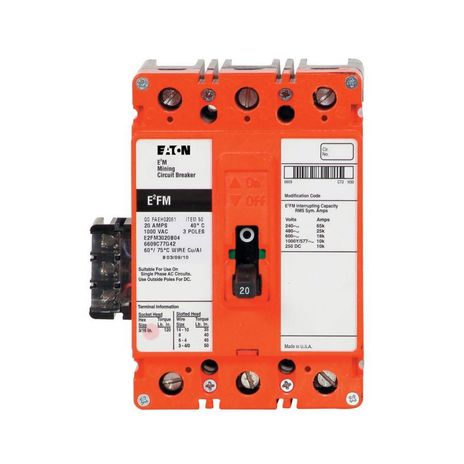

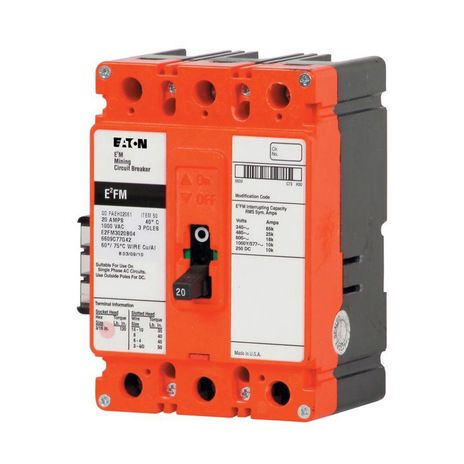

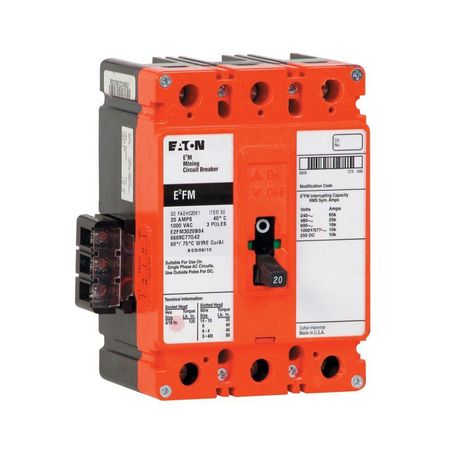

Eaton E2 mining complete molded case circuit breaker
$2,781.68
UnitAvailable on backorder
Product Details
Eaton E2 mining complete molded case circuit breaker, F-frame, E2FM, Non-interchangeable magnetic only trip, 750-2500A trip rating, Three-pole, 20A, 1000Y/577 Vac, 250 Vdc, Line and load, Mining, 1mk-1bk same side left term.
Attributes
| Alarm Lockout | 1mk-1bk same side left terminal |
| Amperage Rating | 20 A |
| Circuit Breaker Frame Type | Complete breaker |
| Circuit Breaker Type | E2FM |
| Class | Mining |
| Frame | F |
| Interrupt Rating | 18 kAIC at 600 Vac 10 kAIC at 1000Y/577 Vac 65 kAIC at 240 Vac 10 kAIC at 250 Vdc 25 kAIC at 480 Vac |
| Number Of Poles | Three-pole |
| Terminals | Line and load |
| Trip Rating | 750-2500 A |
| Trip Type | Non-interchangeable magnetic only |
| Voltage Rating | 1000Y/577 Vac, 250 Vdc |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4868125 |
|---|---|
| MPN | E2FM3020B04 |
| Alternate Part # | 6609C77G42 |
| UPC/EAN | 782114804124 |
