Eaton DM1-34038EB-N20B
SKU: CS4851415MPN: DM1-34038EB-N20BAlternate Part #: 3-5031-002AUPC/EAN: 786689349851

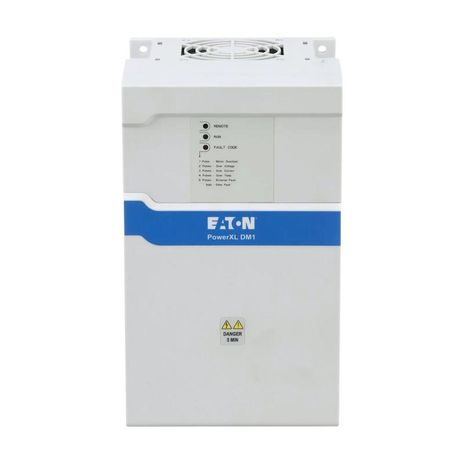

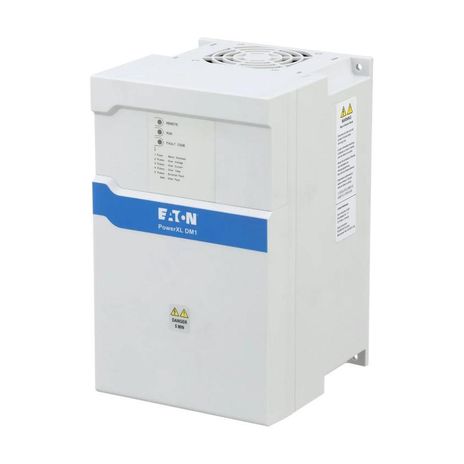

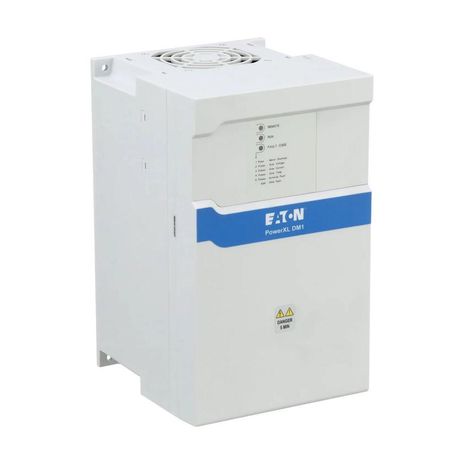

Eaton PowerXL DM1 micro variable frequency drive
Contact us for pricing and availability
Product Details
Eaton PowerXL DM1 series micro drive, Three-phase, 400 V, 38 A, Internal EMC filter, Internal brake chopper, IP20, No ST0 and no ethernet communications
Attributes
| Ambient Operating Temperature Range | -10 to 50 °C CT -10 to 40 °C VT |
| Analog Inputs | 1.0000 |
| Brake Chopper | Internal brake chopper |
| Communications Onboard | Modbus RTU Bluetooth |
| Conformal Coated Boards | Yes |
| Digital Inputs | 4.0000 |
| Digital Outputs | 0.0000 |
| Drive Type | General purpose |
| Electromagnetic Compatibility Filter | Yes |
| Enclosure Rating | IP00 |
| Frame Size | FR4 |
| Fuse Size Max | 80.0000 |
| High Overload Ct Amps | 38 |
| High Overload Ct Hp | 25 |
| High Overload Ct Kw | 18 |
| Input Frequency Range | 50-60 Hz |
| Input Phases | Three-phase |
| Input Voltage Range | 380-480 Vac |
| Internal Choke | No |
| Internal Line Reactor | No |
| Low Overload Vt Amps | 46 |
| Low Overload Vt Hp | 30 |
| Low Overload Vt Kw | 22 |
| Max Overload | 200 % |
| Motor Control Modes | V/Hz Open loop vector control |
| Motor Type | Induction Induction motor Permanent magnet motor (SPM/IPM) |
| Mounting Type | Panel mount |
| Output Frequency Range | 0-400 Hz |
| Output Phases | Three-phase |
| Relay Outputs | 2.0000 |
| Series | DM1 |
Specifications
| SKU | CS4851415 |
|---|---|
| MPN | DM1-34038EB-N20B |
| Alternate Part # | 3-5031-002A |
| UPC/EAN | 786689349851 |
