Eaton DH364NDKW
SKU: CS4850368MPN: DH364NDKWUPC/EAN: 782114136645

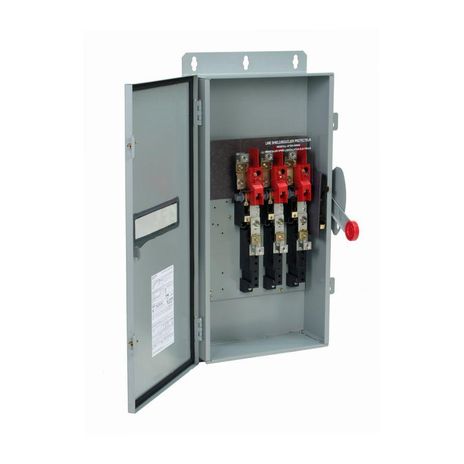

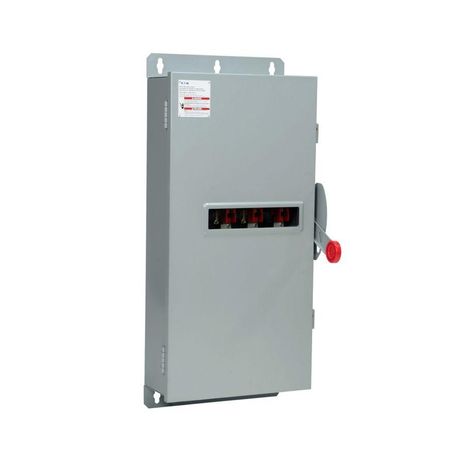

Eaton heavy duty fusible safety switch
$4,652.36
UnitAvailable on backorder
Product Details
Eaton Enhanced visible blade single-throw safety switch, Enhanced visible blades, 200 A, NEMA 12/3R, Painted galvanized steel, Neutral, Three-pole, Four-wire, 600 V, Max Hp: 50, 50/ 125, 150 hp (⅓PH @480, 600 V), #6-300 kcmil Cu/Al
Attributes
| Amperage Rating | 200A |
| Enclosure | NEMA 12, NEMA 3R |
| Enclosure Material | Painted galvanized steel |
| Features | Enhanced visible blade |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible with neutral |
| Hp Rating Max | 50, 50/ 125, 150 hp (⅓PH @480, 600 V) |
| Nema Rating | NEMA 12/3R |
| Neutral | Included |
| Number Of Poles | Three-pole |
| Number Of Wires | 4 |
| Product Category | Heavy Duty, Fusible with neutral |
| Special Features | Enhanced visible blade |
| Type | Heavy duty fusible safety switch |
| Voltage Rating | 600 V |
| Voltage Rating Uom | INH |
| Window | Upper |
Specifications
| SKU | CS4850368 |
|---|---|
| MPN | DH364NDKW |
| UPC/EAN | 782114136645 |
