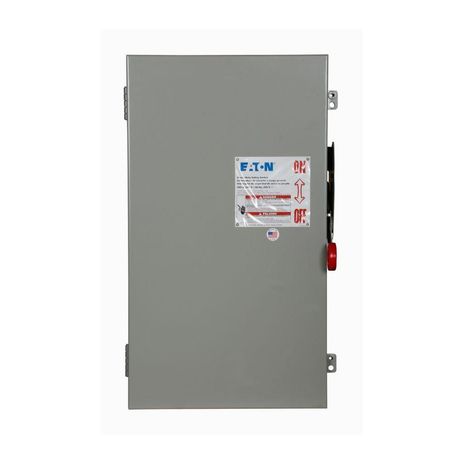

Eaton DH224NGKV
SKU: CS4849271MPN: DH224NGKVUPC/EAN: 786685972817
Eaton heavy duty fusible safety switch
$741.44
UnitAvailable on backorder
Product Details
Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Fusible with neutral, Two-pole, Three-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-250 kcmil Cu/Al
Attributes
| Amperage Rating | 200A |
| Enclosure | NEMA 3R |
| Enclosure Material | Painted galvanized steel |
| Features | Enhanced visible blade |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible with neutral |
| Hp Rating Max | 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc) |
| Nema Rating | NEMA 1 |
| Neutral | Included |
| Number Of Poles | Two-pole |
| Number Of Wires | 3 |
| Special Features | Enhanced visible blade |
| Type | Heavy duty fusible safety switch |
| Voltage Rating | 240V |
| Voltage Rating Uom | AMP |
| Window | No Window |
Specifications
| SKU | CS4849271 |
|---|---|
| MPN | DH224NGKV |
| UPC/EAN | 786685972817 |
