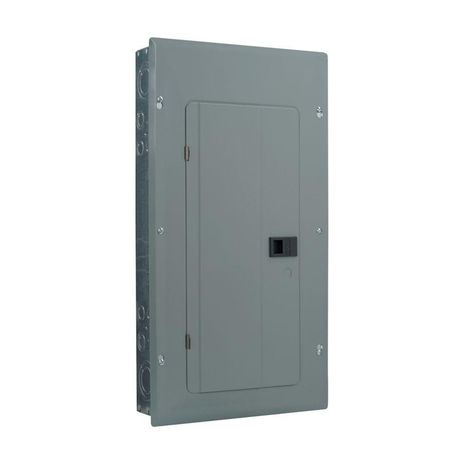

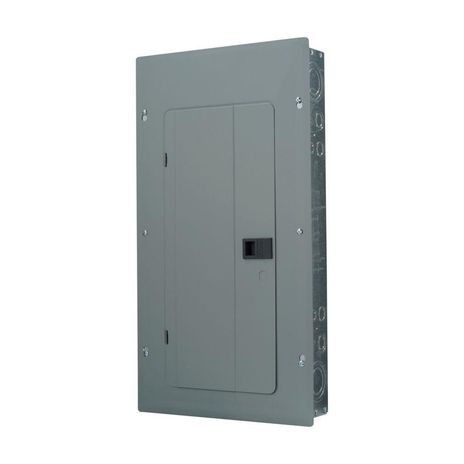

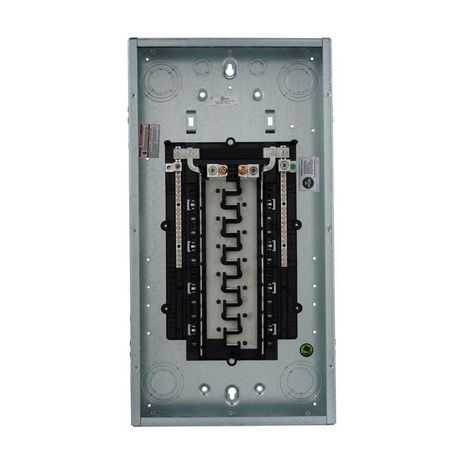

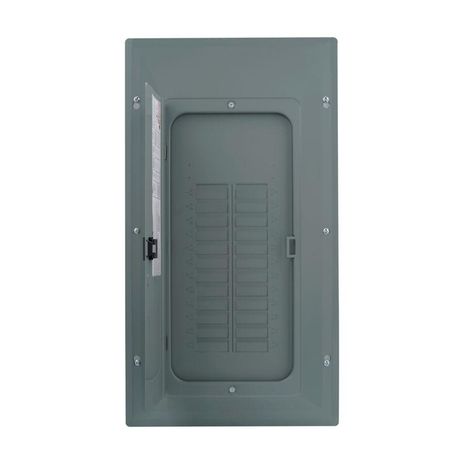

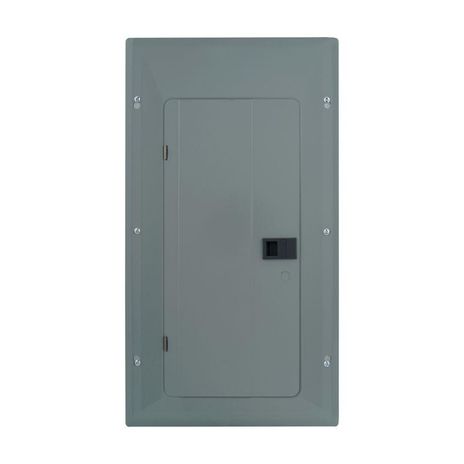

Eaton BRP24L200
SKU: CS4834530MPN: BRP24L200UPC/EAN: 786689053383
Eaton BR main lug loadcenter
$198.49
UnitAvailable on backorder
Product Details
Eaton Eaton BR main lug loadcenter,Main lug only,200 A,X4,Aluminum, NEMA 1,Metallic,10kAIC,flush,48 Circuits,Twenty-four pole,24 Spaces,Two hots,a neutral,and a ground,Single-phase,Type BR 1-inch breakers,120/240V,#1–300 kcmil
Attributes
| Amperage Rating | 200 A |
| Box Size | X4 |
| Bus Material | Aluminum |
| Cover | Cover included |
| Enclosure | NEMA 1 |
| Enclosure Material | Metallic |
| Interrupt Rating | 10 kAIC |
| Main Circuit Breaker | CSR2200 |
| Mounting | Surface, flush |
| Nema Rating | NEMA 1 |
| Number Of Circuits | 48.0000 |
| Number Of Poles | Single-pole |
| Number Of Spaces | 24.0000 |
| Number Of Wires | Two hots, neutral and ground |
| Phase | Single-phase |
| Type | MLO |
| Used With | Type BR 1-inch breakers |
| Voltage Rating | 120/240V |
| Voltage Rating Uom | B22 |
Specifications
| SKU | CS4834530 |
|---|---|
| MPN | BRP24L200 |
| UPC/EAN | 786689053383 |
