Eaton BRP24L125GP1
SKU: CS4834527MPN: BRP24L125GP1UPC/EAN: 786689054489

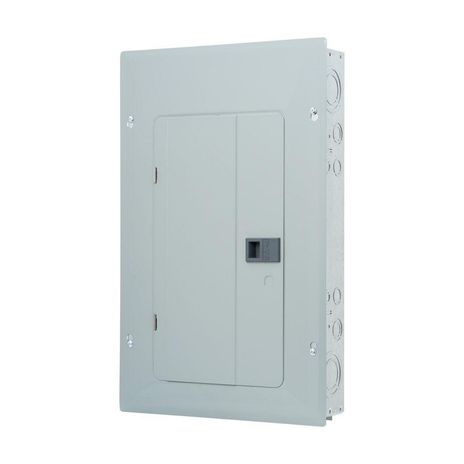

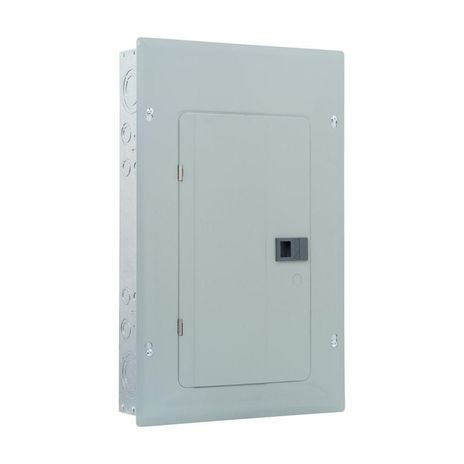

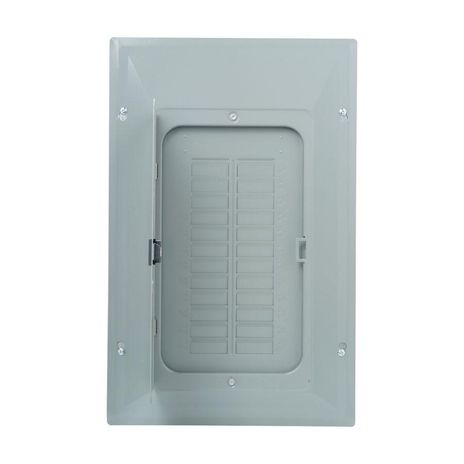

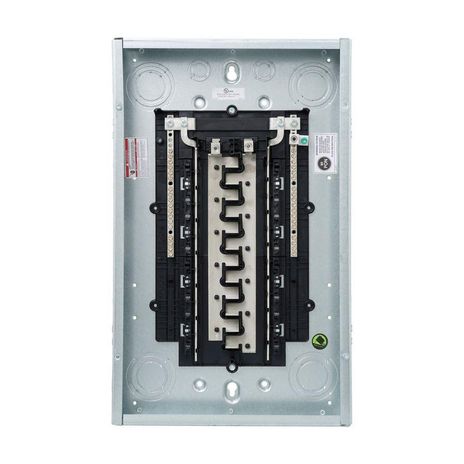

Eaton BR main lug loadcenter
$205.99
UnitAvailable on backorder
Product Details
Eaton Eaton BR main lug loadcenter,Ground bar,Main lug only,125 A,X3,Aluminum, NEMA 1,Metallic,10kAIC,Surface,flush,NEMA 1,48 Circuits,Single-pole,24 Spaces,Single-phase,Type BR 1-inch breakers,120/240V,#6-1/0 AWG Cu/Al
Attributes
| Amperage Rating | 125 A |
| Box Size | X3 |
| Bus Material | Aluminum |
| Cover | Cover included |
| Enclosure | NEMA 1 |
| Enclosure Material | Metallic |
| Interrupt Rating | 10 kAIC |
| Mounting | Surface, flush |
| Nema Rating | NEMA 1 |
| Number Of Circuits | 48.0000 |
| Number Of Poles | Single-pole |
| Number Of Spaces | 24.0000 |
| Phase | Single-phase |
| Type | MLO |
| Used With | Type BR 1-inch breakers |
| Voltage Rating | 120/240V |
| Voltage Rating Uom | AMP |
| Wire Size | #6-1/0 AWG Cu/Al |
Specifications
| SKU | CS4834527 |
|---|---|
| MPN | BRP24L125GP1 |
| UPC/EAN | 786689054489 |
