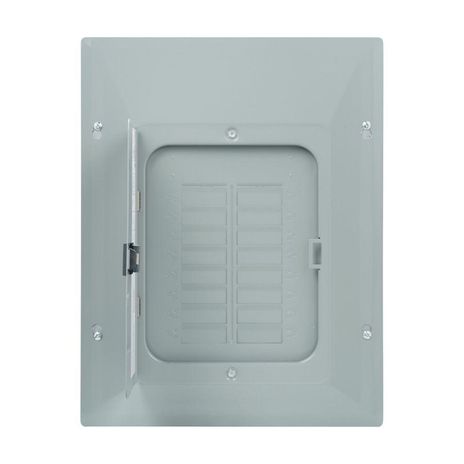

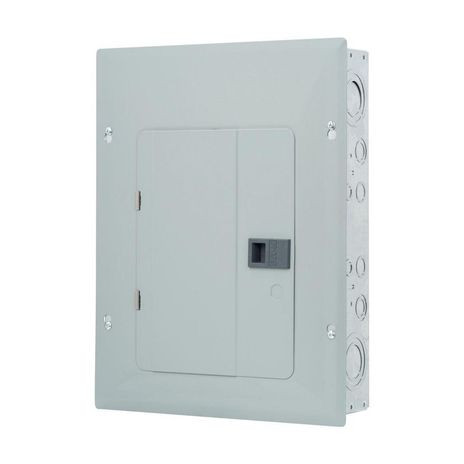

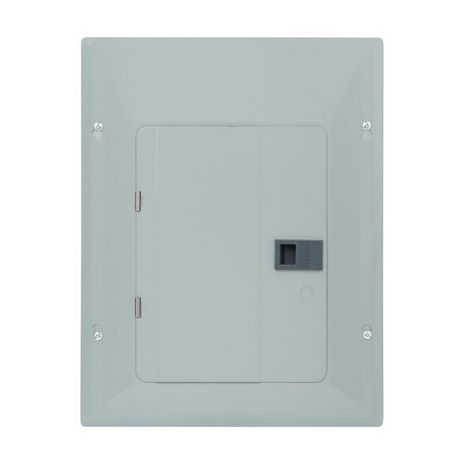

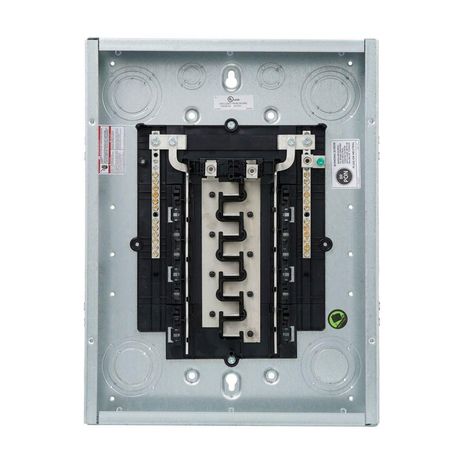

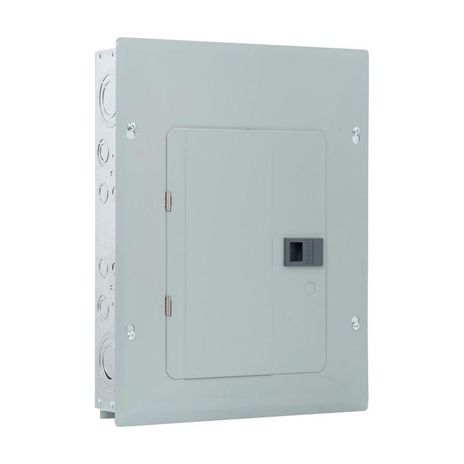

Eaton BRP16L125
SKU: CS4834479MPN: BRP16L125UPC/EAN: 786689053116
Eaton BR main lug loadcenter
$127.68
UnitAvailable on backorder
Product Details
Eaton Eaton BR main lug loadcenter,Main lug only,125 A,X1,Aluminum,Gray, NEMA 1,Metallic,10kAIC,BR2125,Surface,flush,32 Circuits,Twenty-four pole,16 Spaces,Two hots,a neutral,and a ground,Single-phase,120/240V,#6-2/0 AWG Cu/Al
Attributes
| Amperage Rating | 125 A |
| Box Size | X1 |
| Bus Material | Aluminum |
| Color | Gray |
| Cover | Cover included |
| Enclosure | NEMA 1 |
| Enclosure Material | Metallic |
| Interrupt Rating | 10 kAIC |
| Main Circuit Breaker | BR2125 |
| Mounting | Surface, flush |
| Nema Rating | NEMA 1 |
| Number Of Circuits | 32.0000 |
| Number Of Poles | Single-pole |
| Number Of Spaces | 16.0000 |
| Number Of Wires | Two hots, neutral and ground |
| Phase | Single-phase |
| Type | MLO |
| Used With | Type BR 1-inch breakers |
| Voltage Rating | 120/240V |
| Voltage Rating Uom | AMP |
Specifications
| SKU | CS4834479 |
|---|---|
| MPN | BRP16L125 |
| UPC/EAN | 786689053116 |
