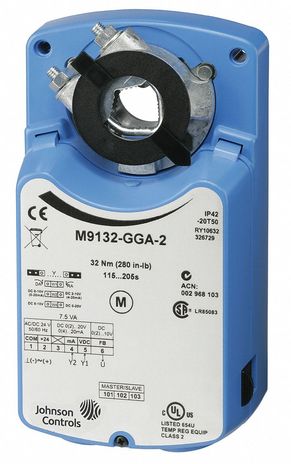

Johnson Controls M9132-AGE-2

ROTARY ACTUATOR

Features:

• Simple direct coupling reduces installation and commissioning time while improving reliability by eliminating damper linkages
• Robust 280 lb-in (32 Nm) torque rating
• Rotation range 0 to 90° in 5° increments, mechanically limited to 93°
• Fits ⅜ to ¾” (10 to 20 mm) round shaft, ⅜ to ⅝” (10 to 16 mm) square shaft; 1” (25.4 mm) diameter jackshaft with M9000- 154 adapter
• On-off, floating and proportional control inputs meet the needs of most applications
• Output position feedback provides simple closed-loop control with accurate position sensing
• Master/slave operation allows synchronized control for two actuators stacked for tandem applications - doubles rated torque output
• Electronic stall detection ensures higher reliability by deactivating the actuator motor when a stall condition is detected
• Jumper selectable DC 0(2)…10 V or DC 0(4)…20 mA, proportional control
• Jumper-selectable rotation direction and manual gear release simplify installation, setup, and field adjustments
• 2-SPDT optional auxiliary switches
• ½” NPT threaded housing provides easy connection for electrical fittings
• Manual gear release simplifies damper / valve setup and commissioning
• -4 to 122°F (-20 to 50°C) ambient temperature range
• Rated for 30,000 full stroke cycles
• UL Listed, CSA Certified, CE Mark
