Johnson Controls C450SBN-4C

EXPANSION MODULE, 1 STAGE

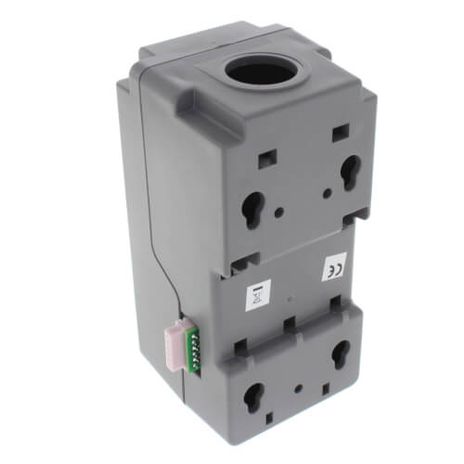

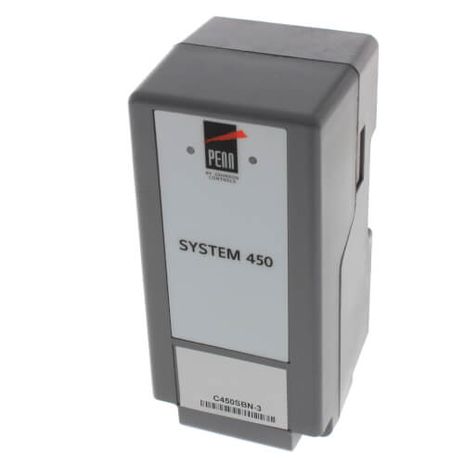

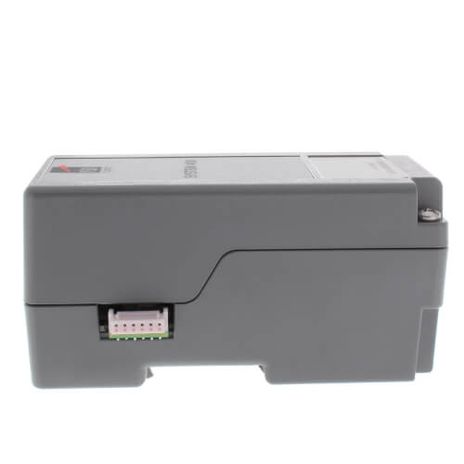

Note: Image displayed is of the C450SBN-3C model.

System 450 Relay Output Expansion Module w/ SPDT Line-Voltage Output Relay

Specifications:

• Note: A System 450 control module or module assembly can use an internal or an external supply power source, but must not be connected to both simultaneously.
• Power consumption: 0.8 VA maximum
• Internal Supply Power: C450YNN-1C Power Supply Module
• External Supply Power: 24 VAC (20–30 VAC) Safety Extra-Low Voltage (SELV) (Europe), Class 2 (North America), 50/60 Hz, 10 VA minimum
• Ambient Operating Temperature: -40 to 150°F
• Humidity: Up to 95% RH non-condensing; Maximum Dew Point 85°F
• Control construction: Independently mounted control, surface mounted with Lexan 950 enclosure suitable for DIN rail mounting or direct mounting to a hard, even surface.
• Dimensions (H x W x D): 5.00 x 2.38 x 2.38 in.
• Weight: 0.38 lb
• Compliance (United States): UL 60730-1, File E27734; FCC Compliant to CFR47, Part 15, Subpart B,Class B
