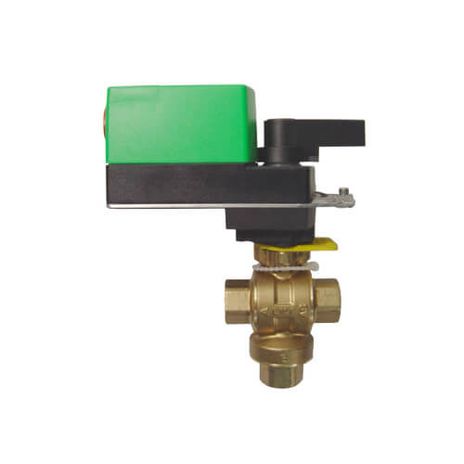

KMC VEB-4608BBCK

Valve, 2” Valve: 2” 3W NPT, 38.2 CV, Proportional, Non-Failsafe

2” Three-Way Pneumatic Mixing or Diverting Control Ball Valve with Proportional Actuator (38.2 Cv)

VEB-46 series, three-way, mixing or diverting, NPT, control ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from ½ to 2-½ inches and most feature an optimizing insert, which reduces and characterizes the ball opening for lower Cv ratings similar to globe valves.

The body design also provides a standard “T” pattern to simplify installation. They include a fieldrepairable blowout-proof stem and leak-proof shutoff. The reduced torque seals and O-rings eliminate the need for high torque actuators. KMC’s lowtorque MEP-4xxxV actuators work on all valve sizes.

Valve assemblies have brackets with a patentpending, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately. See the MEP-4000/4800 Series and MEP-4200/4500/4900 Series data sheets for more actuator information.

Features:

• Mixing or diverting applications
• Choice of fail-safe (with switch-selectable direction) or non-fail-safe operation
• Proportional input (or, if valve body and actuator are ordered separately, tri-state/two-position)
• Equal percentage flow characteristics with optimizer insert (except indicated models)
• Cv ratings similar to globe valves
• Standard “T” pattern connections
• Field-repairable valve design
