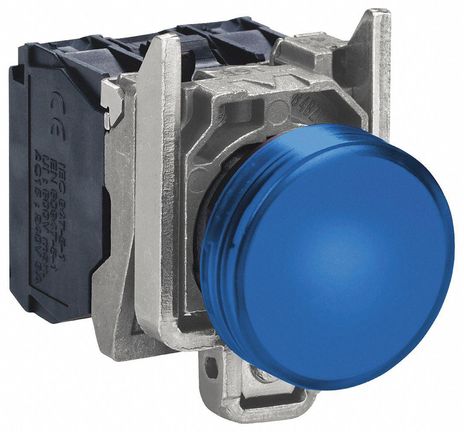

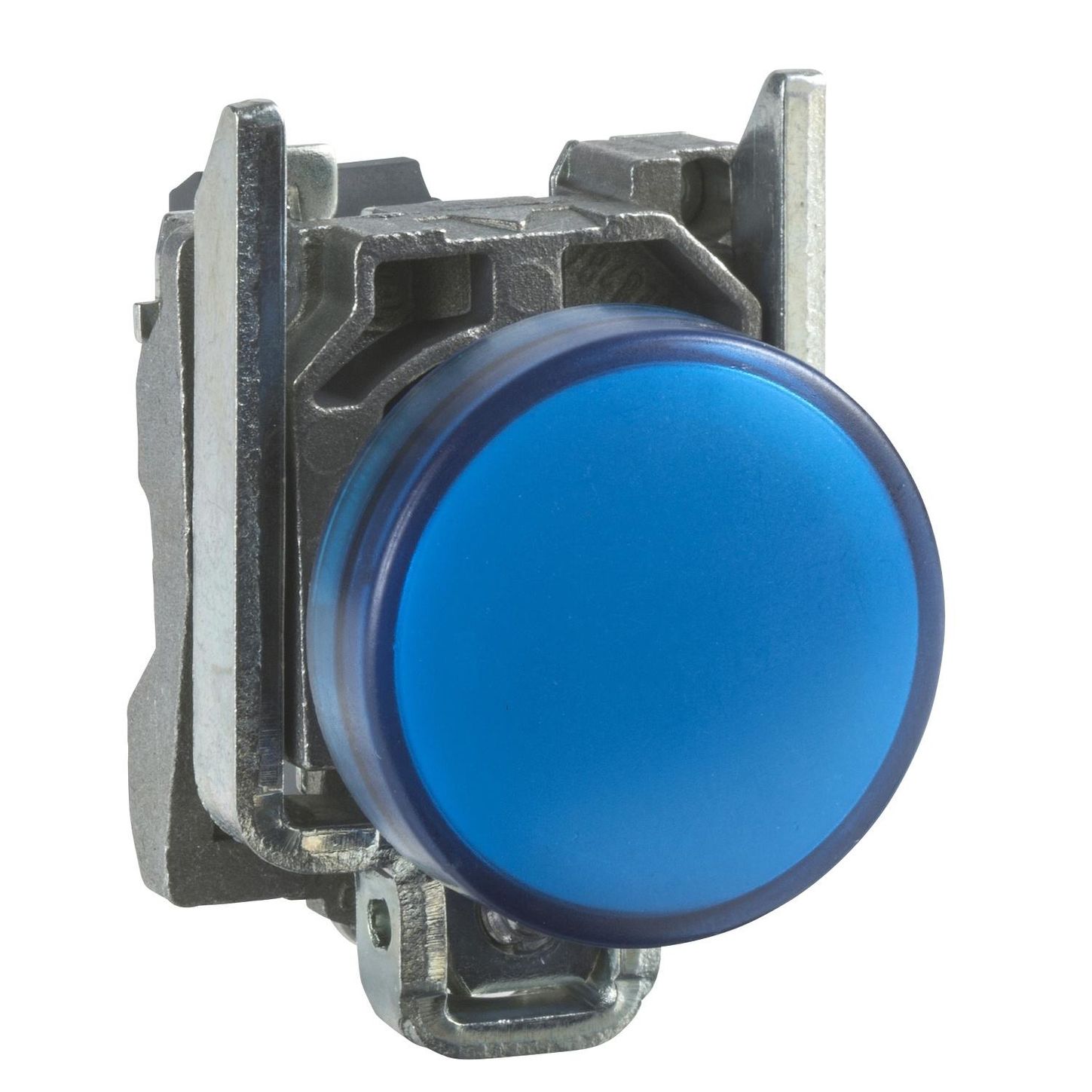

Square D XB4BVM6

Name: Square D XB4BVM6
Brand: Square D
SKU: CS4813973
Availability: OutOfStock

SKU: CS4813973MPN: XB4BVM6

Pilot light, Harmony XB4,metal, blue, 22mm, universal LED, plain lens, 230...240V AC

Product Details

Pilot light, metal, blue, Ø22, plain lens with integral LED, 230...240 VAC

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Bezel Material	chromium plated metal
Bulb Base	integral LED
Cap Operator Or Lens Colour	blue
Cap Operator Or Lens Colour 1	blue
Current Consumption	14 mA
Device Presentation	complete product
Device Short Name	XB4
Fixing Collar Material	zamak
Head Type	standard
Light Source	protected LED
Light Source Colour	blue
Mounting Diameter	22 mm
Operator Additional Information	with plain lens
Product Certifications	UL listed# #CSA
Product Or Component Type	pilot light
Protective Treatment	TH
Range Of Product	Harmony XB4
Sale Per Indivisible Quantity	1.0000
Shape Of Signaling Unit Head	round
Signalling Type	steady
Signalling Type 1	steady
Standards	EN/IEC 60947-5-1# #UL 508# #EN/IEC 60947-1# #EN/IEC 60947-5-4# #EN/IEC 60947-5-5# #JIS C8201-5-1# #CSA C22.2 No 14# #JIS C8201-1
Terminals Description Iso N 1	(X1-X2)PL
