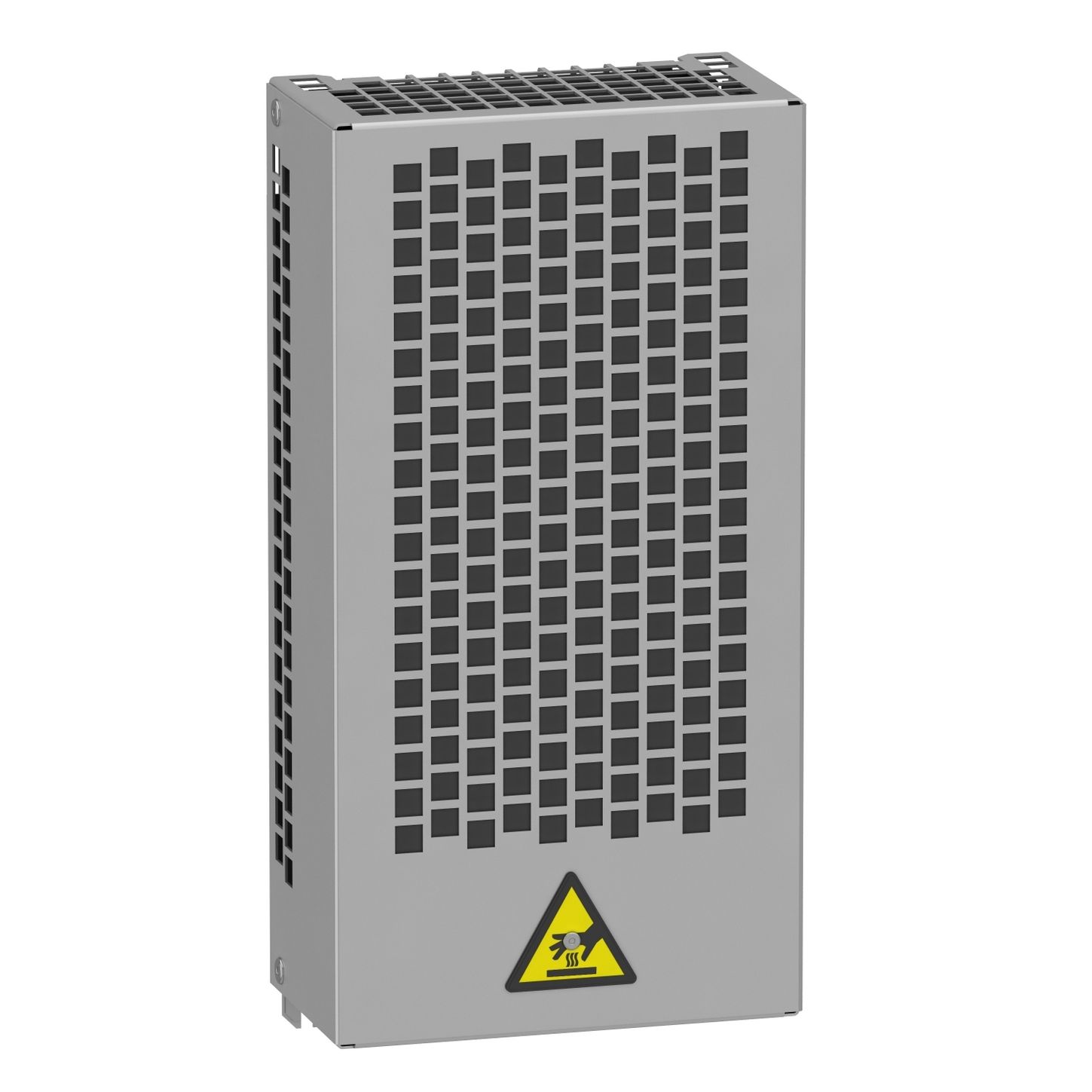

Square D VW3A7732

Name: Square D VW3A7732
Brand: Square D
SKU: CS4813837
Availability: OutOfStock

SKU: CS4813837MPN: VW3A7732

braking resistor, Altivar, 28Ohms, 0.3kW, IP20

Product Details

BRAKING RESISTOR 28 OHMS 0,3 KW IP20

Product or component type : Braking resistor
Average power available : 0.3 kW at 50 °C
Ohmic value : 28 Ohm
Electrical connection : terminal, connection capacity: \<\= 10 mm² / AWG 8 for drive
Protection type : Thermal protection via drive
Width : 175 mm
Height : 345 mm
Depth : 100 mm
Net weight : 2.7 kg

Ambient Air Temperature For Operation	0-50 °C
Ambient Air Temperature For Operation 1	0-50 °C
Ambient Air Temperature For Storage	-25-70 °C
Ip Degree Of Protection	IP20
Ohmic Value	28 Ohm
Product Or Component Type	braking resistor
Range Compatibility	Altivar Machine ATV340# #Easy Altivar 310# #Altivar Process ATV900# #Altivar Machine ATV320# #Easy Altivar 310L
