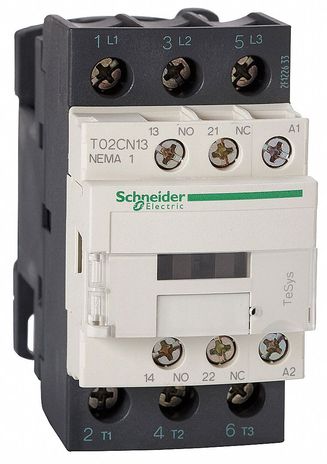

Square D T02CN13G7

Contactor, Tesys N Contactors, nonreversing, 3P, 3phase, 27A, 10HP at 460VAC, NEMA size 1, 120VAC coil at 50/60Hz, open

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 1 contactor has a 27 continuous current rating. It also has ratings of 7.5 HP at 200 to 230 Vac and 10 HP at 460 and 575 VAC. To maximize convenience and to reduce inventory the TeSys N contactor uses the common TeSys accessories. The contactor has a 120 VAC replaceable coil. Contactor is UL listed and CSA Certified. This contactor is not in an enclosure. This contactor is 3.34 inches tall, 1.76 inches wide and 3.66 inches deep. It weighs 0.92 lbs. The screw clamp terminals will accept power wires from 14 AWG to 6 AWG and control wires from 18 AWG to 10 AWG. This TeSys N contactor is UL listed and CSA Certified.
