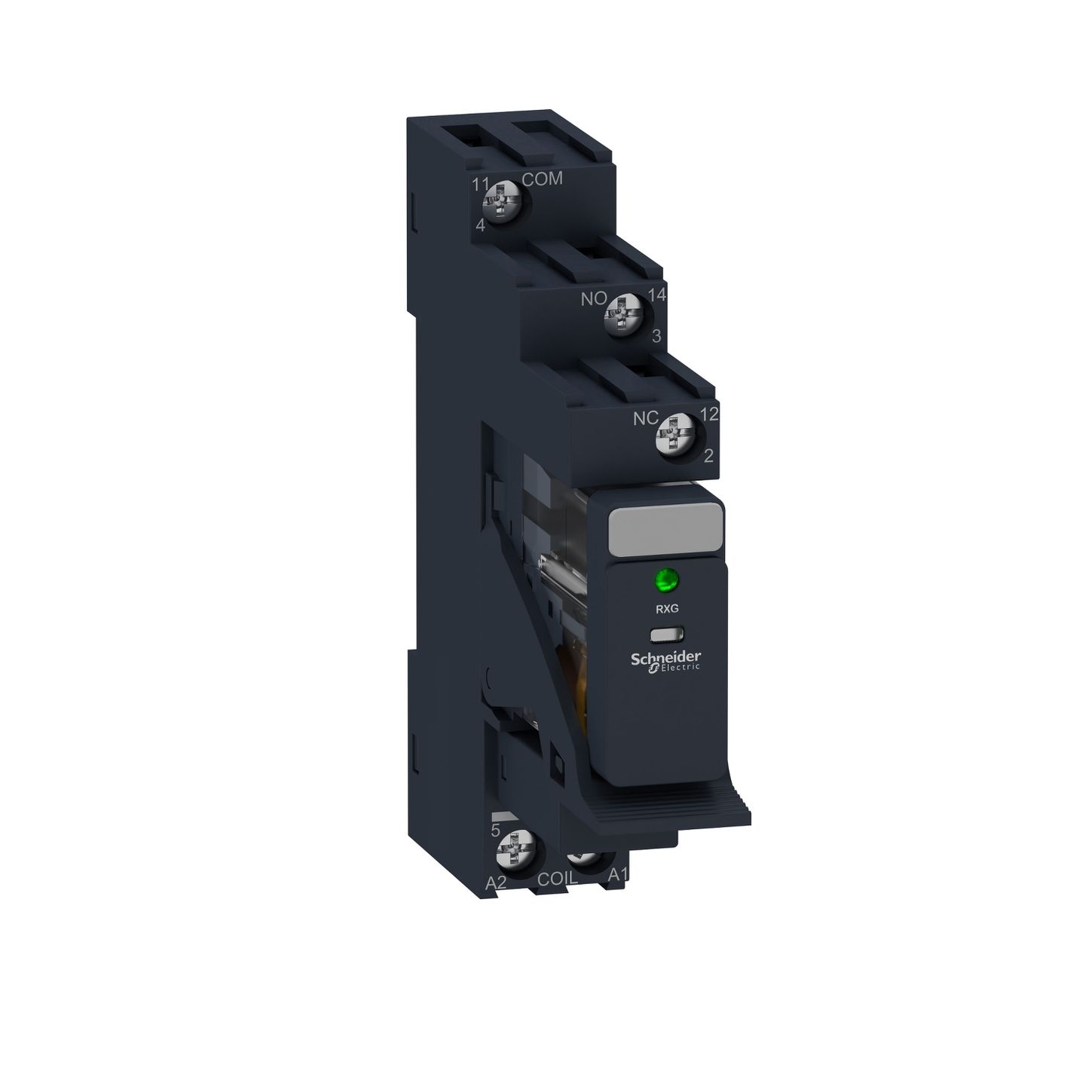

Square D RXG13BDPV

Name: Square D RXG13BDPV
Brand: Square D
SKU: CS4812743
Availability: OutOfStock

SKU: CS4812743MPN: RXG13BDPV

interface plug in relay, Harmony Electromechanical Relays, pre assembled, 10A, 1CO, with LED, 24V DC

Product Details

Interface plug-in relay pre-assembled, 10 A, 1 CO, LED, protection module, 24 V DC

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-85 °C
Colour Of Cover	transparent
Contact Resistance	100 mOhm
Contacts Material	silver alloy (AgSnO2In2O3)
Contacts Type And Composition	1 C/O
Device Presentation	complete product
Device Short Name	RXG
Electrical Insulation Class	class F
Ip Degree Of Protection	IP20
Mechanical Durability	10000000 cycles
Mounting Position	any position
Operating Time	20 ms
Overvoltage Category	III
Pollution Degree	2
Product Certifications	EAC# #CSA# #UL# #CE
Product Or Component Type	pre-assembled plug-in relay with socket
Protection Category	RT I
Range Of Product	Harmony Electromechanical Relays
Relative Humidity	10-85 %
Reset Time	20 ms
Safety Reliability Data	B10d = 100000
Series Name	interface relay
Standards	IEC 61810-1# #CSA C22.2 No 14# #UL 508# #IEC 61984
Status Led	with
Torque Value	0.8 N.m# #7.0 lbf.in
Utilisation Coefficient	0.20000000298023
