All ProductsSquare D

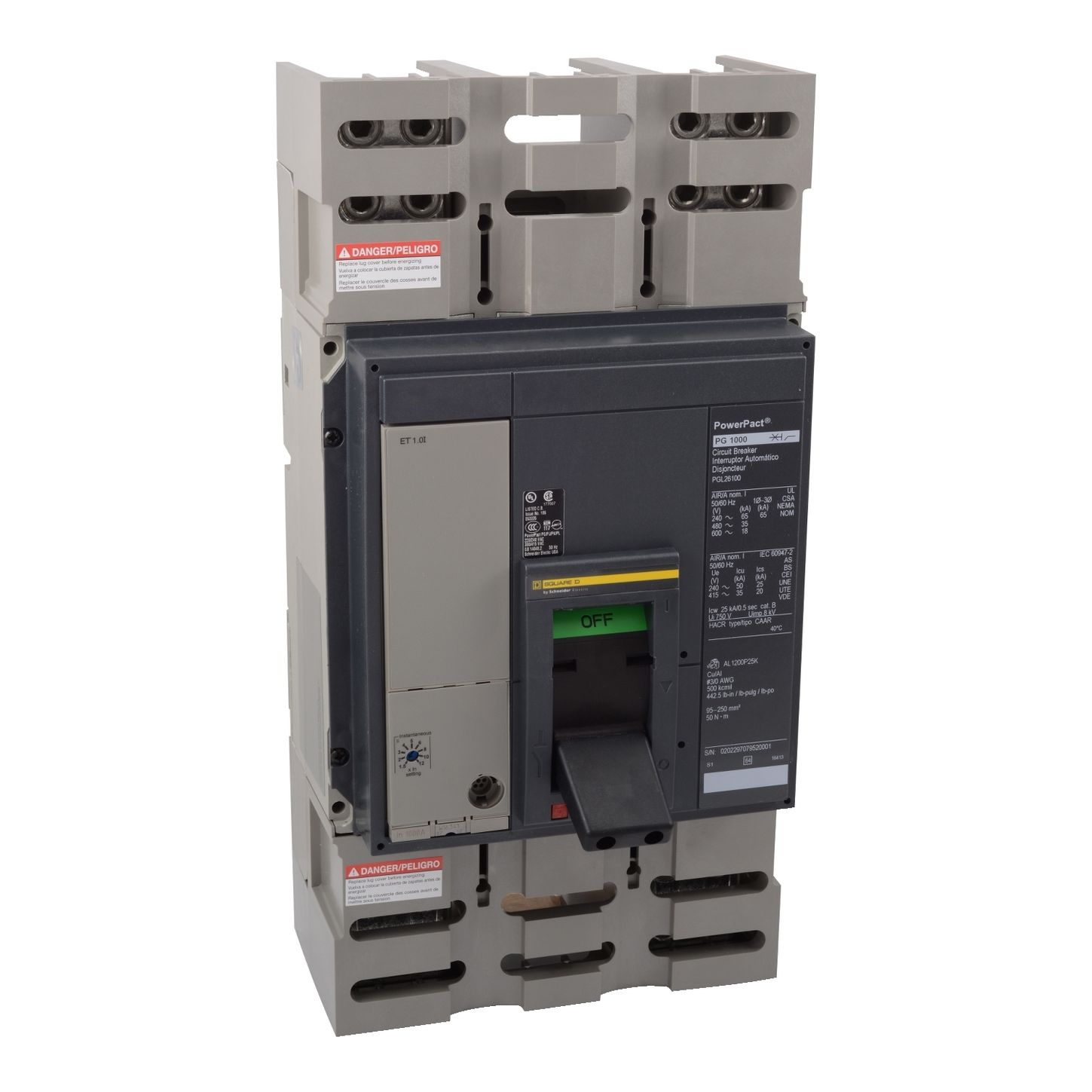

Square D PJL36120CU41A

SKU: CS4812491MPN: PJL36120CU41A

Circuit breaker, PowerPacT P, 1200A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.0A, 100%

Square D PJL36120CU41A
Contact us for pricing and availability

Product Details

MOLDED CASE CIRCUIT BREAKER 600V 1200A

  • Product or component type : Circuit breaker
  • Range of product : PowerPact P
  • Current sensor rating range : 1200 A
  • Line Rated Current : 1200 A
  • Breaking capacity : 100 kA 240 V AC, 65 kA 480 V AC, 25 kA 600 V AC
  • AWG gauge : AWG 3/0...500 kcmil aluminium/copper)4
  • Trip unit technology : Electronic, ammeter, Micrologic 3.0 A, LI
  • Rated operational voltage : 600 V AC
  • Module type : P-Frame
  • Mounting location :Bolt-on
  • Mounting mode : Unit mount
  • Poles description : 3P
  • Breaking capacity code : J
  • Electrical connection : Lugs load, Lugs line

Attributes

Ambient Air Temperature For Operation -2-70 °C
Ambient Air Temperature For Operation 1 -2-70 °C
Ambient Air Temperature For Storage -50-85 °C
Breaking Capacity Code J
Continuous Current Rating 1.0000
Control Type toggle
Device Application distribution
Long Time Pick Up Adjustment Range 0.4…1 x Ir
Mounting Support lug
Network Frequency 50/60 Hz
Poles Description 3P
Product Name PowerPact P
Product Or Component Type circuit breaker
Quality Labels CE
Quantity Per Set 1
Range PowerPact
Standards UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier AL1200P25K
Trip Unit Name Micrologic 3.0 A
Utilisation Category category A

Specifications

SKUCS4812491
MPNPJL36120CU41A
