Square D METSEPM89RD96

Name: Square D METSEPM89RD96
Brand: Square D
SKU: CS4812044
Availability: OutOfStock

SKU: CS4812044MPN: METSEPM89RD96

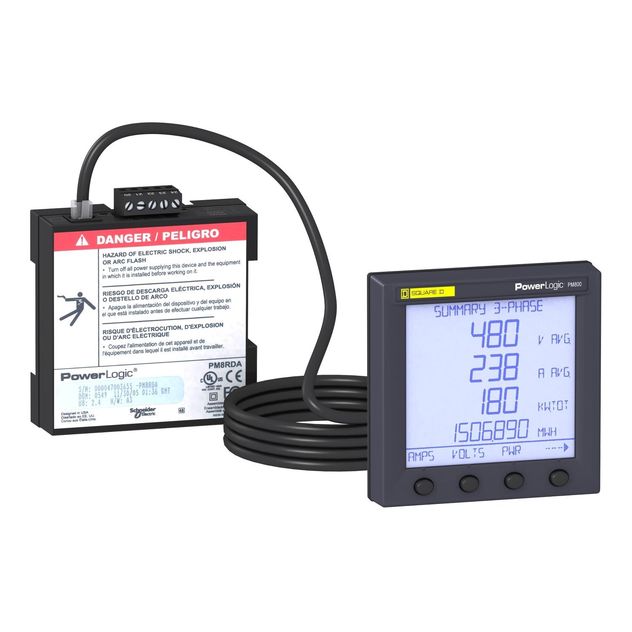

PowerLogic PM8000 - 89RD Remote display 96x96mm, with 3m cable + mount acc

Product Details

Display (RD96) compatible with PowerLogic PM8000, ION7400 and ION9000. 96mm by 96mm color graphical LCD with push-button interface. Information avaiable from the display: power, energy consumption, harmonics, frequency, voltage, current, alarms and input output status. Viewable area: color TFT LCD, 320 pixels by 240 pixels QVGA. Panel mounting using a 30 mm push-button hole or ¼ DIN cutout. Ingress Protection IP54 (UL type 12) rating.

Attributes

Ambient Air Temperature For Operation	-25-60 °C
Ambient Air Temperature For Operation 1	-25-60 °C
Ambient Air Temperature For Storage	-40-85 °C
Connector Type	RJ45
Device Application	human-machine dialogue application
Display Resolution	320 x 240 pixels QVGA
Display Size	3.5 inch
Display Type	colour TFT LCD
Information Displayed	energy consumption# #voltage# #power# #harmonic distortion# #frequency# #current# #system alarm# #I/O status
Messages Display Capacity	graphic objects (bargraph, button, light…)
Mounting Mode	flush-mounted
Operating Altitude	0…3000 m
Product Certifications	IEC
Product Or Component Type	remote display
Range	PowerLogic
