Square D M9F21220
SKU: CS4811888MPN: M9F21220

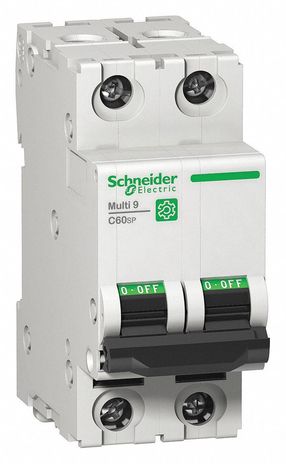

Miniature circuit breaker (MCB), Multi9 C60SP, 2P, 20A, B curve, 10kA (UL1077), 10kA (IEC/EN 60947-2)
$167.16
UnitAvailable on backorder
Product Details
Multi 9 Miniature Circuit Breaker
- Rated Current: 20A* Number of Poles: 2-Pole* Break Capacity: AIR 10kA 480Y/277 VAC conforming to UL01077* Degree of Protection: IP40 for modular enclosure conforming to IEC 60529; IP20 conforming to IEC 60529
Attributes
| 9 Mm Pitches | 4.0000 |
| Ambient Air Temperature For Storage | -40-80 °C |
| Contact Position Indicator | yes |
| Control Type | toggle |
| Curve Code | B |
| Device Application | distribution |
| Device Short Name | C60SP |
| Earth Leakage Protection | without |
| Local Signalling | ON/OFF indication |
| Mechanical Durability | 20000 cycles |
| Mounting Mode | clip-on |
| Mounting Support | DIN rail |
| Network Type | AC# #DC |
| Number Of Protected Poles | 2.0000 |
| Operating Altitude | 0…2000 m |
| Poles Description | 2P |
| Product Name | Multi 9 C60 |
| Product Or Component Type | miniature circuit-breaker |
| Provision For Padlocking | padlockable |
| Range | Multi 9 |
| Trip Unit Technology | thermal-magnetic |
Specifications
| SKU | CS4811888 |
|---|---|
| MPN | M9F21220 |
