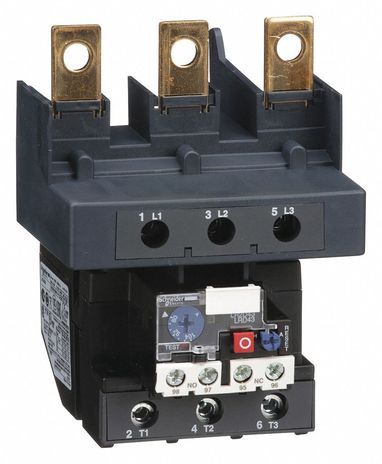

Square D LRD4367

Name: Square D LRD4367
Brand: Square D
SKU: CS4811777
Availability: OutOfStock

SKU: CS4811777MPN: LRD4367

thermal overload relays, TeSys Deca, 95...120A, class 10A, lug clamps

Product Details

BIMETALLIC OVERLOAD RELAY 600V

Ambient Air Temperature For Storage	-60-70 °C
Auxiliary Contact Composition	1 NO + 1 NC
Device Short Name	LRD
Network Frequency	0…400 Hz
Network Type	AC# #DC
Product Certifications	IEC# #UL# #CSA# #CCC# #EAC# #ATEX INERIS
Product Compatibility	LC1D150# #LC1D115
Product Name	TeSys LRD# #TeSys Deca
Product Or Component Type	differential thermal overload relay
Range	TeSys
Relay Application	motor protection
Standards	EN/IEC 60947-4-1# #EN/IEC 60947-5-1# #UL 60947-4-1# #UL 60947-5-1# #CSA C22.2 No 60947-4-1# #CSA C22.2 No 60947-5-1# #GB/T 14048.4# #GB/T 14048.5# #EN 50495
Temperature Compensation	-20-60 °C
Thermal Protection Adjustment Range	95-120 A
