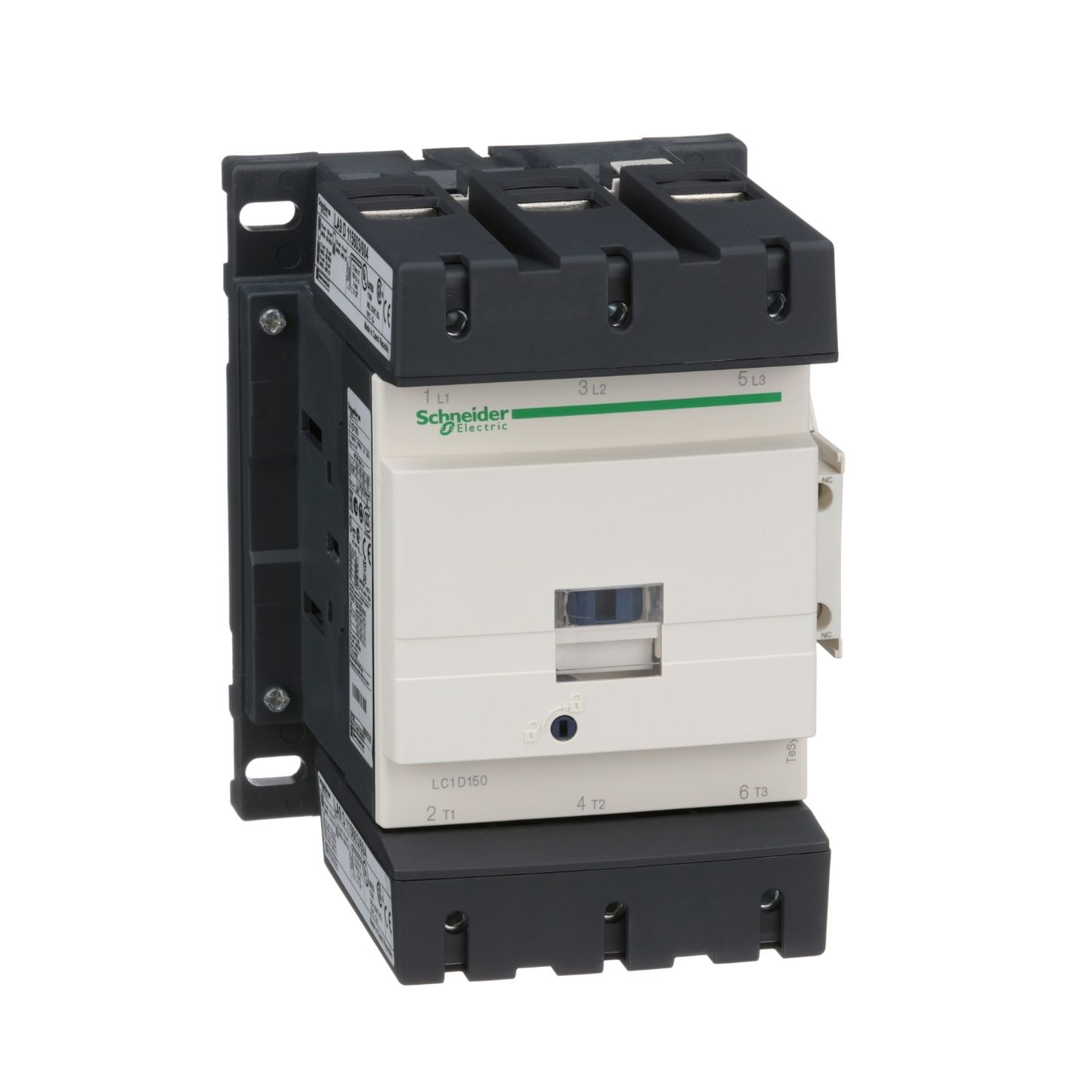

Square D LC1D150E7

Name: Square D LC1D150E7
Brand: Square D
SKU: CS4811608
Availability: OutOfStock

SKU: CS4811608MPN: LC1D150E7

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, \<\=440V, 150A, 48V AC 50/60Hz coil, screw clamp terminals

Product Details

TeSys D contactor, 3P(3 NO), AC-3, \<\= 440 V 150 A, 48 V AC 50/60 Hz coil

poles description : 3P
Power pole contact composition : 3 NO
Rated operational voltage : Power circuit: Power circuit: \<\= 1000 V AC 25...400 Hz, Power circuit: \<\= 300 V DC
Rated operational current : 150 A (at \<60 °C) at \<\= 440 V AC AC-3 for power circuit
Motor power kW : 80 kW at 415...440 V AC 50/60 Hz (AC-3)
Motor power HP (UL / CSA) : 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors
Control circuit type : AC at 50/60 Hz
Control circuit voltage : 48 V AC 50/60 Hz
Auxiliary contact composition : 1 NO + 1 NC

Ambient Air Temperature For Storage	-60-80 °C
Auxiliary Contact Composition	1 NO + 1 NC
Coil Technology	built-in bidirectional peak limiting diode suppressor
Contactor Application	resistive load# #motor control
Device Short Name	LC1D
Mechanical Durability	8 Mcycles
Mounting Support	plate# #rail
Overvoltage Category	III
Pole Contact Composition	3 NO
Poles Description	3P
Pollution Degree	3.0
Product Certifications	CCC# #BV# #DNV# #CSA# #LROS (Lloyds register of shipping)# #GOST# #RINA# #GL# #UL# #UKCA
Product Name	TeSys D# #TeSys Deca
Product Or Component Type	contactor
Protective Cover	with
Range	TeSys
Signalling Circuit Frequency	25…400 Hz
Utilisation Category	AC-1# #AC-4# #AC-3
