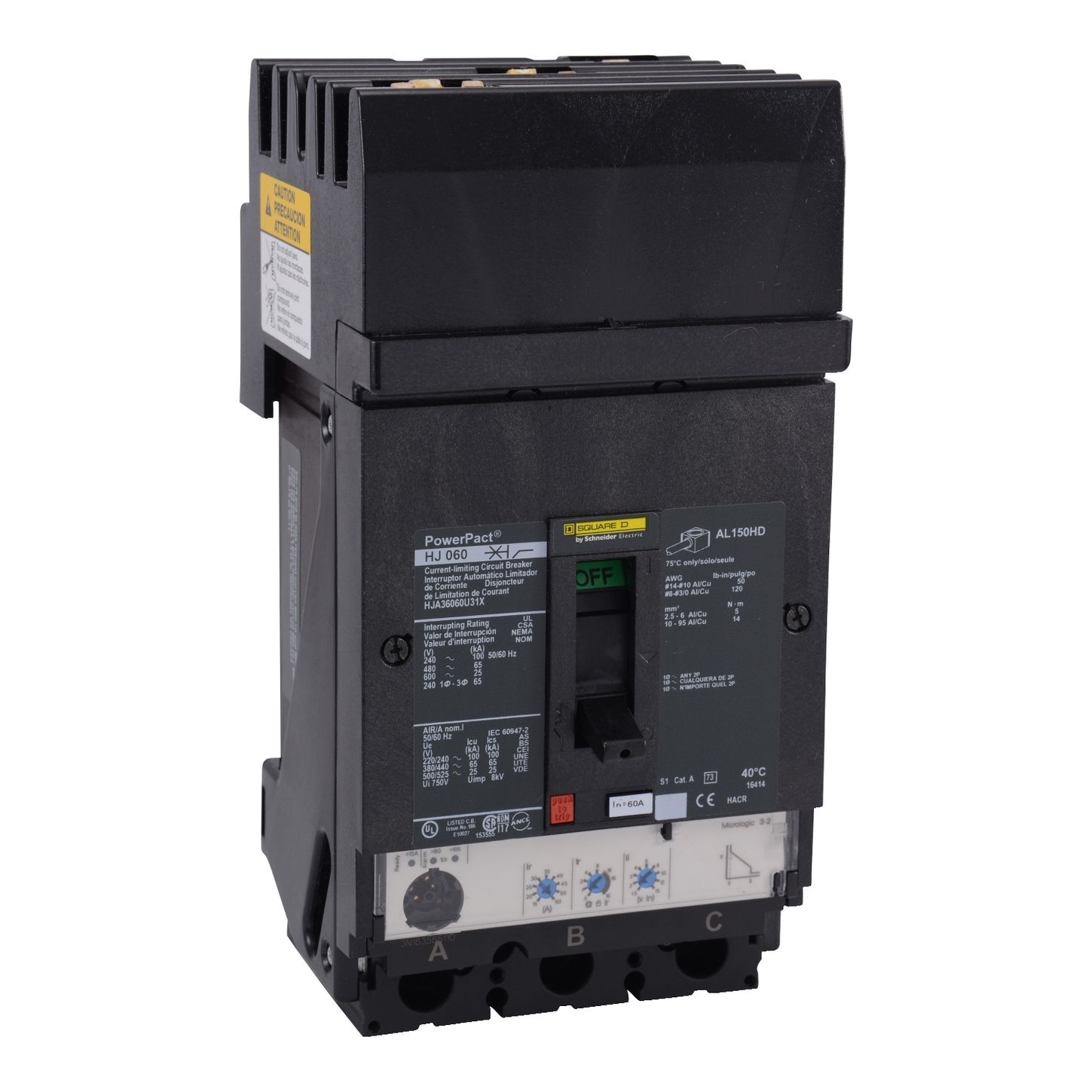

Square D HJA36060U31X

Name: Square D HJA36060U31X
Brand: Square D
SKU: CS4811397
Availability: OutOfStock

SKU: CS4811397MPN: HJA36060U31XUPC/EAN: 785901235873

Circuit breaker, PowerPacT H, 60A, 3 pole, 600VAC, 25kA, I-Line, Micrologic 3.2, 80%, ABC

Product Details

Circuit breaker, PowerPact H, I Line, Micrologic 3.2, 60A, 3 pole, 600V, 25kA, phase ABC

Ambient Air Temperature For Operation	-2-70 °C
Ambient Air Temperature For Operation 1	-2-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	J
Communication Interface	Modbus# #Ethernet
Continuous Current Rating	0.80000001192093
Control Type	toggle
Device Application	distribution
Long Time Pick Up Adjustment Range	0.25…1 x In
Mounting Support	bracket
Network Frequency	50/60 Hz
Phase Connection	ABC
Poles Description	3P
Product Name	PowerPact H
Product Or Component Type	circuit breaker
Protected Poles Description	3t
Quality Labels	CE
Quantity Per Set	1
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL150HD
Trip Unit Name	Micrologic 3.2
Utilisation Category	category A
