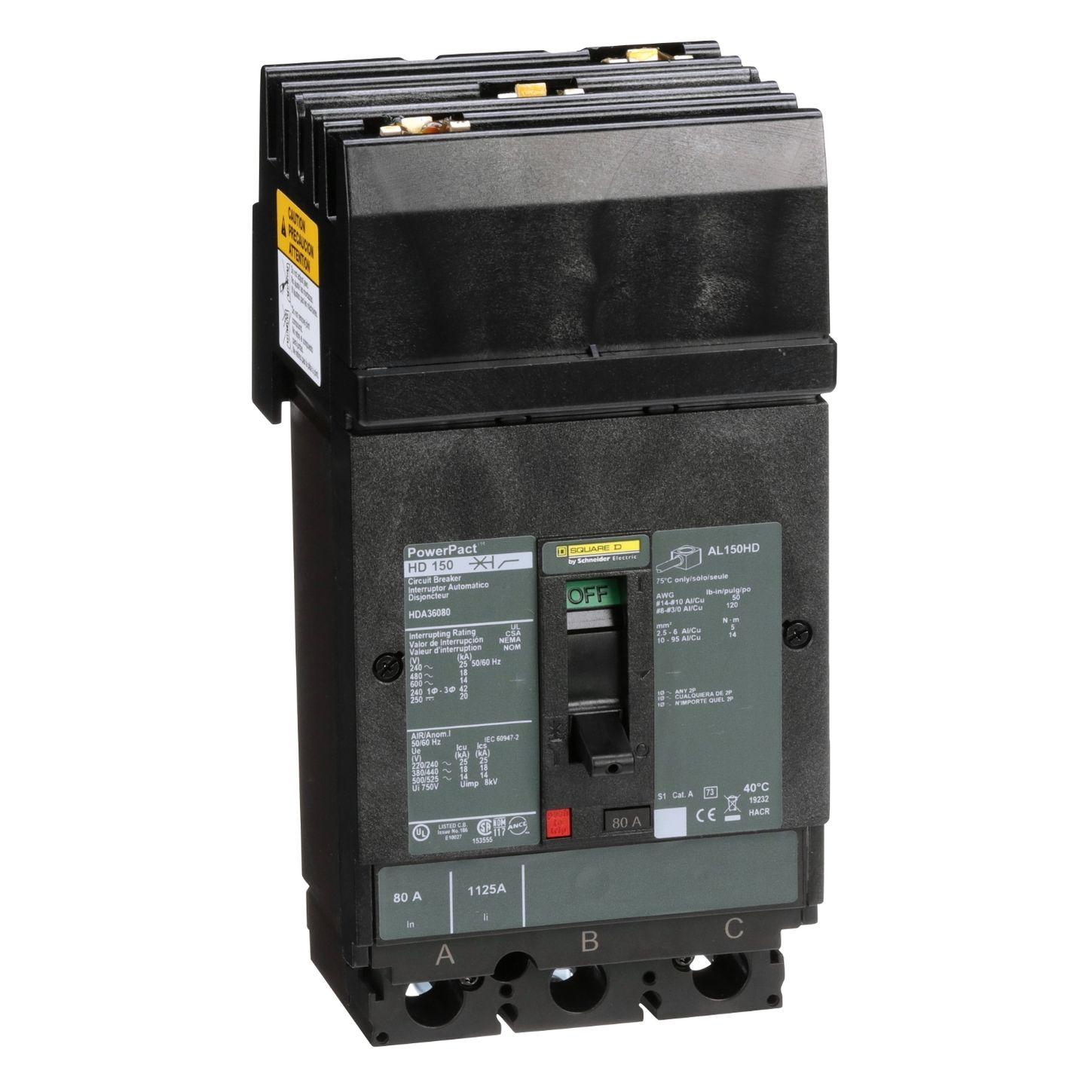

Square D HDA36080

Name: Square D HDA36080
Brand: Square D
SKU: CS4811314
Availability: OutOfStock

SKU: CS4811314MPN: HDA36080UPC/EAN: 785901507277

Circuit breaker, PowerPacT H, 80A, 3 pole, 600VAC, 14kA, I-Line, thermal magnetic, 80%, ABC

Product Details

PowerPact H, Circuit breaker, I-Line, thermal magnetic, 80A, 3 pole, 14 kA, 600 VAC, phase ABC

Ambient Air Temperature For Operation	-2-70 °C
Ambient Air Temperature For Operation 1	-2-70 °C
Ambient Air Temperature For Storage	-50-85 °C
Breaking Capacity Code	D
Communication Interface	Modbus# #Ethernet
Continuous Current Rating	0.80000001192093
Control Type	toggle
Device Application	distribution
Magnetic Hold Current	800 A
Magnetic Tripping Current	1450-1450 A
Mounting Support	bracket
Network Frequency	50/60 Hz
Phase Connection	ABC
Poles Description	3P
Product Name	PowerPact H
Product Or Component Type	circuit breaker
Protected Poles Description	3t
Quality Labels	CE
Quantity Per Set	1
Range	PowerPact
Standards	UL# #CSA# #NEMA# #NOM-003-SCFI-2000# #IEC 60947-2
Terminal Identifier	AL150HD
Utilisation Category	category A
