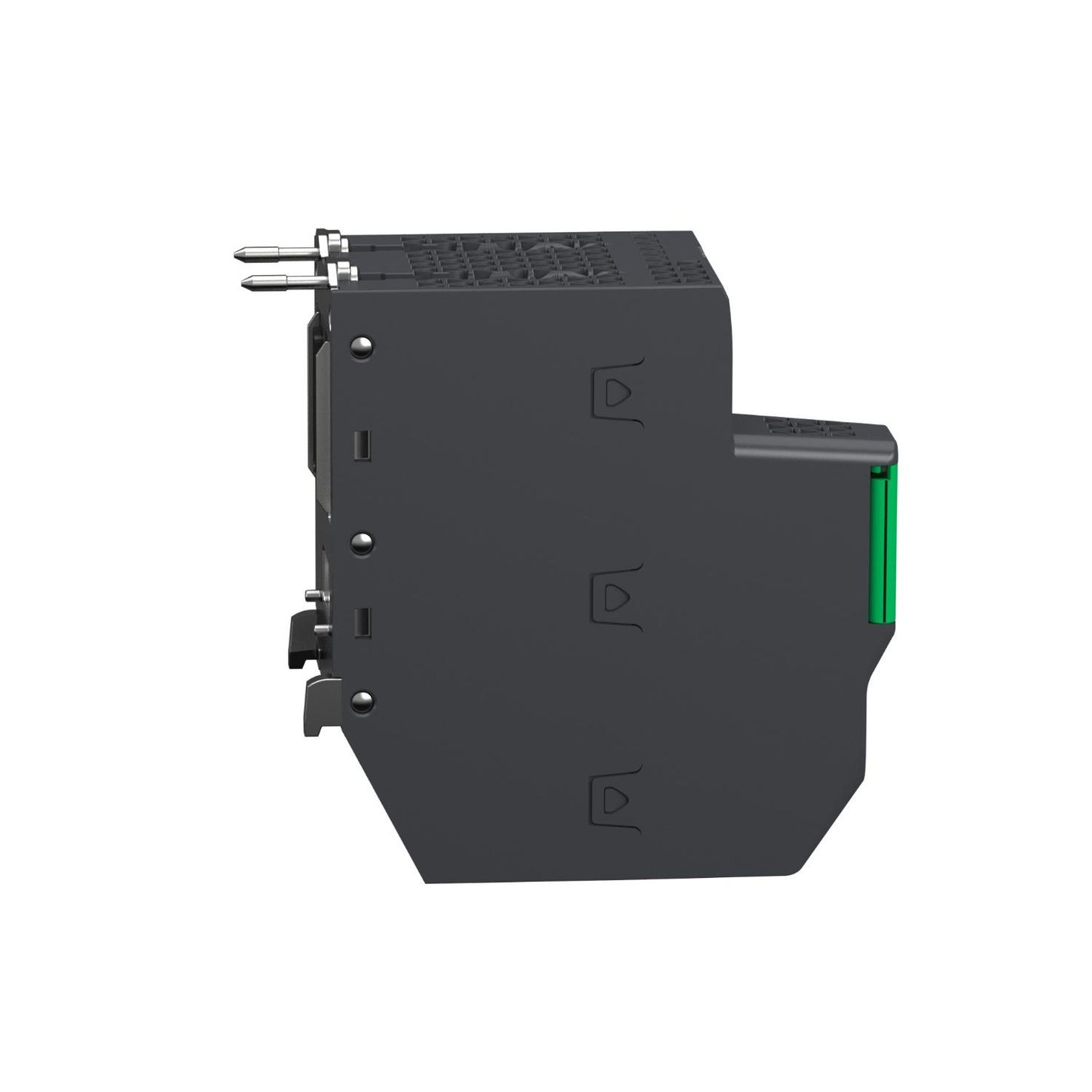

Square D BMEP584040

standalone processor, Modicon M580, 16MB, 61 Ethernet devices, 16 remote IO racks of X80 and Quantum

Processor module M580 - Level 4 - Remote

• Range of product : Modicon M580
• Product or component type : Processor module
• Number of racks : 8
• Local I/O processor capacity (discrete) : 4096 I/O
• Local I/O processor capacity (analog) : 1024 I/O
• Number of application specific channel (local rack) : 144
• Application specific I/O : Counter, SSI encoder, Motion control, Accurate time stamping, HART, Serial link
• Checks : Process control
• Control channels : Programmable loops
• Integrated connection type : 1 Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, USB type mini B
• Number of remote I/O station : 16 - 2 rack(s) per remote drop
• Number of distributed equipment : 64
• Communication module processor capacity : 8 AS-Interface module, 4 Ethernet communication module
• Communication service : RIO scanner, DIO scanner
• Current consumption : 295 mA at 24 V DC
• MTBF reliability : 600000 H
• Marking : CE
