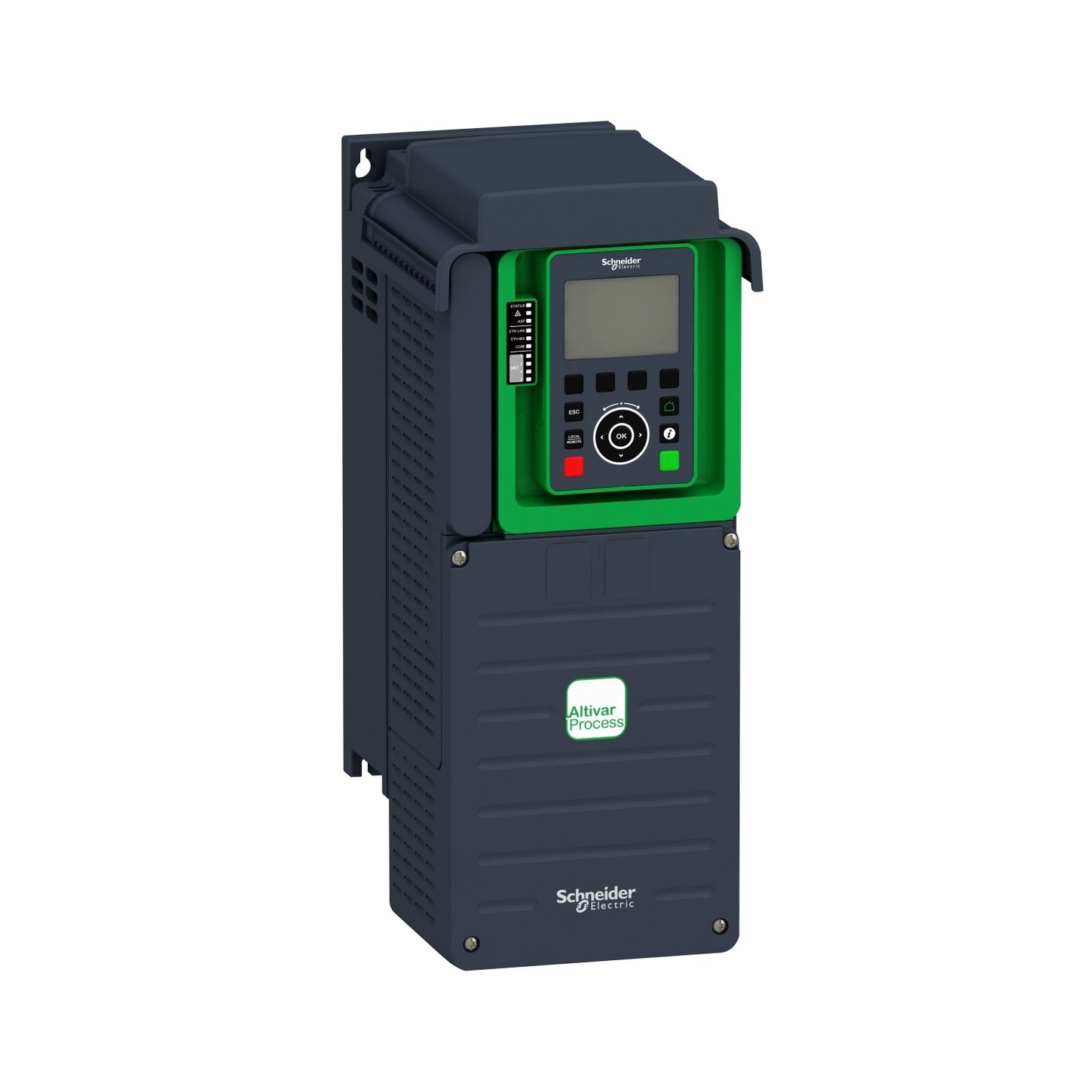

Square D ATV630U55S6X

Name: Square D ATV630U55S6X
Brand: Square D
SKU: CS4810736
Price: 2857.28 USD
Availability: OutOfStock

SKU: CS4810736MPN: ATV630U55S6X

variable speed drive, Altivar Process ATV600, ATV630, 7.5hp, 600V, IP21

$2,857.28

Unit

Available on backorder

Quantity

remove

add

Product Details

ATV630 - Variable speed drive, 7.5 HP, 600V, IP21

Attributes

Acceleration And Deceleration Ramps	linear adjustable separately from 0.01…9999 s# #S, U or customized
Ambient Air Temperature For Storage	-40-70 °C
Analogue Input Number	3.0000
Analogue Output Number	2.0000
Asynchronous Motor Control Profile	variable torque standard# #constant torque standard# #optimized torque mode
Braking To Standstill	by DC injection
Communication Port Protocol	Modbus serial# #Modbus TCP# #Ethernet
Data Format	8 bits, configurable odd, even or no parity
Device Short Name	ATV630
Discrete Input Logic	16 preset speeds
Discrete Input Number	8.0
Enclosure Mounting	wall mounted
Isolation	between power and control terminals
Marking	CE
Maximum Output Frequency	500 kHz
Motor Slip Compensation	not available in permanent magnet motor law# #adjustable# #automatic whatever the load# #can be suppressed
Mounting Mode	wall mount
Noise Level	56 dB
Nominal Switching Frequency	4 kHz
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Overvoltage Category	III
Physical Interface	Ethernet# #2-wire RS 485
Pollution Degree	2.0
Product Certifications	CSA# #UL# #TÜV
Product Destination	asynchronous motors# #synchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	process and utilities
Prospective Line Isc	70 kA
Quantity Per Set	1
Range Of Product	Altivar Process ATV600
Regulation Loop	adjustable PID regulator
Relay Output Number	3.0000
Speed Drive Output Frequency	0.1-500 Hz
Standards	UL 508C# #EN/IEC 61800-3# #EN/IEC 61800-5-1# #IEC 61000-3-12# #IEC 60721-3# #IEC 61508# #IEC 13849-1
Synchronous Motor Control Profile	permanent magnet motor# #synchronous reluctance motor
Transmission Frame	RTU
Transmission Rate	10, 100 Mbits# #4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Type Of Cooling	forced convection
Type Of Polarization	no impedance
Variant	standard version
Volume Of Cooling Air	103 m3/h
