Telemecanique 9013GMG2J99

Name: Telemecanique 9013GMG2J99
Brand: Telemecanique
SKU: CS4810274
Availability: OutOfStock

SKU: CS4810274MPN: 9013GMG2J99UPC/EAN: 785901053606

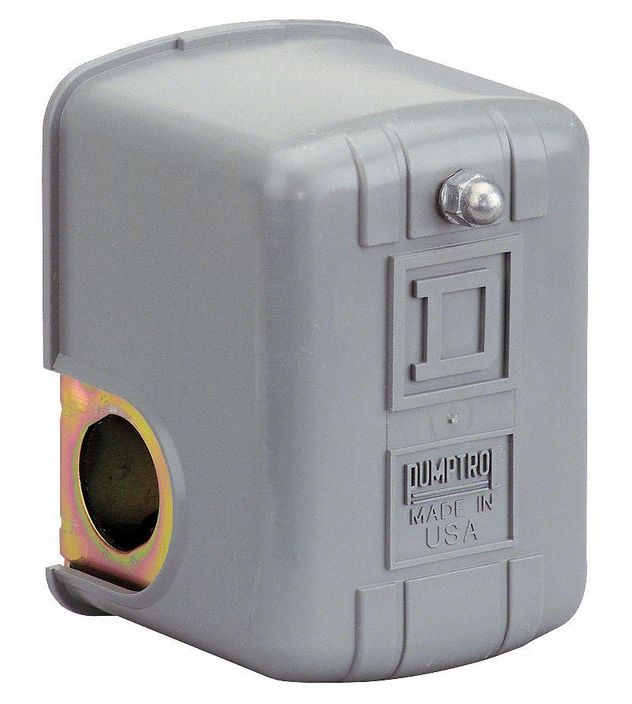

Square D Pumptrol, pump or compressor switch 9013GM, adjustable diff., factory setting

Product Details

Pressure Switch:

Type: G* Pumptrol* Control electrically driven water pumps and air compressors* UL Listed File Number: E12158 CCN NKPZ - CSA Certified File Number: LR25490* Enclosure Rating: NEMA 1* Pressure Connection: Internal: 0.25 Inch NPSF* 1-Phase: 2HP 115VAC, 3HP 230VAC, 5HP 460/575VAC; 3-Phase: 3HP 115VAC, 5HP 230VAC, 5HP 460/575VAC* Mounting: Bracket* 575VAC* 2 Normally Closed* 2-Pole* Differential Type: Adjustable* Maximum Pressure: 300 PSIG

Sena Adjustable Range On Rising Pressure	10-35 psi
Sena Ambient Air Temperature For Operation	-33-257 °F
Sena Ambient Air Temperature For Operation 1	-33-257 °F
Sena Ambient Air Temperature For Storage	-33-257 °F
Sena Approximate Adjustable Differential	4-8 psi
Sena Destruction Pressure	100 psi
Sena Electrical Circuit Type	power circuit
Sena Factory Modification	-
Sena Local Display	without
Sena Maximum Operating Rate	10 cyc/mn
Sena Mechanical Durability	300000 cycles
Sena Operating Position	any position
Sena Pressure Actuator	diaphragm
Sena Pressure Sensor Name	9013GM
Sena Pressure Sensor Type	electromechanical pressure switch
Sena Pressure Switch Type Of Operation	regulation between 2 thresholds
Sena Product Certifications	CSA file LR25490# #UL listed file E12158
Sena Product Specific Application	control electrically driven water pumps and air compressors
Sena Protective Treatment	none
Sena Quantity Per Set	1
Sena Range Of Product	Square D Pumptrol
Sena Scale Type	adjustable differential
Sena Setting	internal
Sena Standards	CE# #UL 508# #NSF ANSI 372
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	L2-T2# #L1-T1
Sena Type Of Packing	individual
Sena Value Of Setting	specify pressure settings
