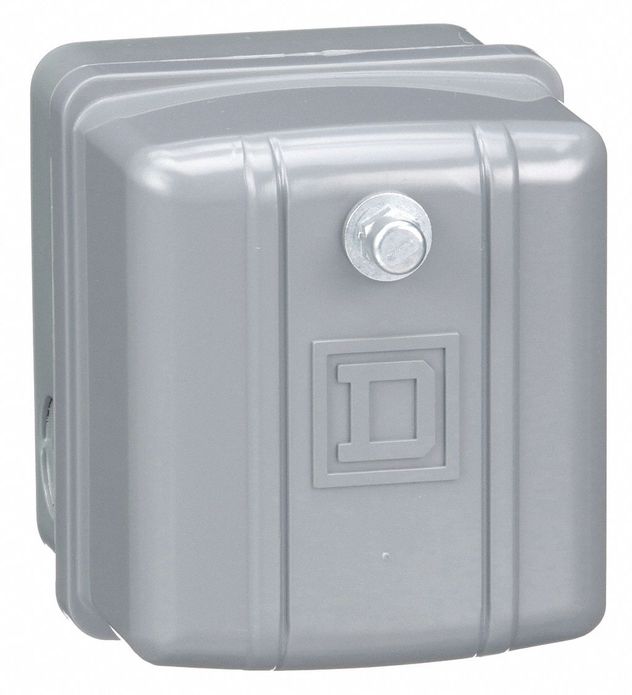

Telemecanique 9013GHG5J63X

Name: Telemecanique 9013GHG5J63X
Brand: Telemecanique
SKU: CS4810259
Availability: OutOfStock

SKU: CS4810259MPN: 9013GHG5J63XUPC/EAN: 785901489887

Square D Pumptrol, pump or compressor switch 9013GH, adjustable diff., 145 175 PSI

Product Details

Pump or compressor switch 9013GH, Adjustable diff, 145-175 psi

Sena Adjustable Range On Rising Pressure	80-250 psi
Sena Ambient Air Temperature For Operation	-33-257 °F
Sena Ambient Air Temperature For Operation 1	-33-257 °F
Sena Ambient Air Temperature For Storage	-33-257 °F
Sena Approximate Adjustable Differential	24-45 psi
Sena Destruction Pressure	300 psi
Sena Electrical Circuit Type	power circuit
Sena Factory Modification	2-way pressure release valve
Sena Local Display	without
Sena Maximum Operating Rate	10 cyc/mn
Sena Mechanical Durability	300000 cycles
Sena Operating Position	any position
Sena Pressure Actuator	diaphragm
Sena Pressure Sensor Name	9013GH
Sena Pressure Sensor Type	electromechanical pressure switch
Sena Pressure Switch Type Of Operation	regulation between 2 thresholds
Sena Product Certifications	UL listed file E12158# #CSA file LR25490
Sena Product Specific Application	control electrically driven water pumps and air compressors
Sena Protective Treatment	none
Sena Quantity Per Set	1
Sena Range Of Product	Square D Pumptrol
Sena Scale Type	adjustable differential
Sena Setting	internal
Sena Standards	UL 508# #NSF ANSI 372# #CE
Sena Terminal Block Type	4 terminals
Sena Terminals Description Iso N 1	L1-T1# #L2-T2
Sena Type Of Packing	individual
Sena Value Of Setting	145…175 psi
