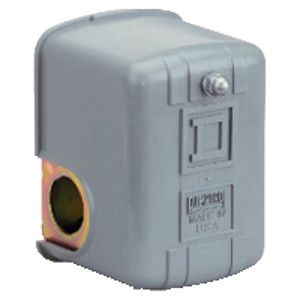

Telemecanique 9013FRG22J19

SKU: CS4810180MPN: 9013FRG22J19UPC/EAN: 785901000853

Square D Pumptrol, water pump switch 9013FR, adjust diff., 22 16 PSI, reverse action

Telemecanique 9013FRG12J23, 9013FRG12J23P, 9013FRG12J35, 9013FRG22J19, 9013FRG22J36P, 9013FRG2J23, 9013FRG32J19, 9013FRG32J23, 9013FRG42J36, 9013FRG62J32, 9013FRG62J35P
Telemecanique 9013FHG12J52, 9013FHG22J43, 9013FHG29J27, 9013FHG29J43, 9013FHG2J27, 9013FHG32J39, 9013FHG32J52, 9013FHG32J55, 9013FHG39J52, 9013FHG39J55, 9013FHG42J59, 9013FHG59J59, 9013FHG9J43, 9013FRG12J23, 9013FRG12J23P
Telemecanique 9013FRG12J23, 9013FRG12J23P, 9013FRG12J35, 9013FRG22J19, 9013FRG22J36P, 9013FRG2J23, 9013FRG32J19, 9013FRG32J23, 9013FRG42J36, 9013FRG62J32, 9013FRG62J35P
Telemecanique 9013FHG12J52, 9013FHG22J43, 9013FHG29J27, 9013FHG29J43, 9013FHG2J27, 9013FHG32J39, 9013FHG32J52, 9013FHG32J55, 9013FHG39J52, 9013FHG39J55, 9013FHG42J59, 9013FHG59J59, 9013FHG9J43, 9013FRG12J23, 9013FRG12J23P
$107.34
Unit
2 Units Available at Factory - Ships Same/Next Business Day
remove
add

Product Details

Pressure Switch:

  • Type: F* Pumptrol* To control electrically driven water pumps* UL Listed File Number: E12158 CCN NKPZ - CSA Certified File Number: LR25490* Enclosure Rating: NEMA 1* Pressure Connection: Internal: 0.25 Inch NPSF* 1-Phase: 1HP@115/230VAC; 3-Phase: 1HP@115/230VAC; 0.25HP@115/230VDC* Mounting: Bracket* 575VAC* 2 Normally Closed* 2-Pole* Differential Type: Adjustable* 6 to 20 PSIG

Attributes

Sena Adjustable Range On Rising Pressure 4-25 psi
Sena Ambient Air Temperature For Operation -33-257 °F
Sena Ambient Air Temperature For Operation 1 -33-257 °F
Sena Ambient Air Temperature For Storage -33-257 °F
Sena Approximate Adjustable Differential 6-20 psi
Sena Destruction Pressure 220 psi
Sena Electrical Circuit Type power circuit
Sena Factory Modification -
Sena Local Display without
Sena Maximum Operating Rate 10 cyc/mn
Sena Mechanical Durability 300000 cycles
Sena Operating Position any position
Sena Pressure Actuator diaphragm
Sena Pressure Sensor Name 9013FR
Sena Pressure Sensor Type electromechanical pressure switch
Sena Pressure Switch Type Of Operation regulation between 2 thresholds
Sena Product Certifications UL listed file E12158# #CSA file LR25490
Sena Product Specific Application control electrically driven water pumps
Sena Protective Treatment none
Sena Quantity Per Set 1
Sena Range Of Product Square D Pumptrol
Sena Scale Type adjustable differential
Sena Setting internal
Sena Standards CE# #UL 508# #NSF ANSI 61 Annex G
Sena Terminal Block Type 4 terminals
Sena Terminals Description Iso N 1 L2-T2# #L1-T1
Sena Type Of Packing individual
Sena Value Of Setting 22…16 psi

Specifications

SKUCS4810180
MPN9013FRG22J19
UPC/EAN785901000853
