Schneider Electric VU-8303-661-5-13

Name: Schneider Electric VU-8303-661-5-13
Brand: Schneider Electric
SKU: CS4809422
Availability: OutOfStock

SKU: CS4809422MPN: VU-8303-661-5-13

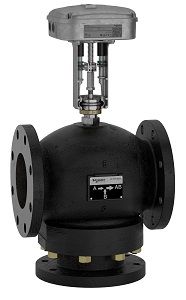

Spacelogic, Globe Vlv Assembly, 3 in, 3-way mixing/diverting, 110 Cv, M900ARW-S2 universal input spring return Act.

Product Details

GV 3IN 3W 110CV PRFL SRU 24V

Us Rated Supply Voltage	20…29 V DC 24 V AC/DC
Actuator	linear
Ambient Air Temperature For Operation	-10-50 °C
Ambient Air Temperature For Storage	-25-65 °C
Analogue Input Range	0…10 V DC 4…20 mA with 500 Ohm resistor
Body Material	cast iron
Control Type	automatic reset
Force Lbf	202 lbf
Force N	900 N
Ip Degree Of Protection	IP65
Motor Type	brushless DC motor
Operating Fluid Temperature	-7-138 °C
Output Current	30 mA
Output Voltage	16 V DC
Product Destination	globe valve
Product Or Component Type	valve-actuator assembly
Relative Humidity	15-95 % non-condensing
Seat Leakage	Port A: Class III (0.1 %)
Seat Material	Port A: brass
Switch Function	2 SPDT (optional)
Targeted Region	North America.

SKU	CS4809422
MPN	VU-8303-661-5-13
