All ProductsSchneider Electric

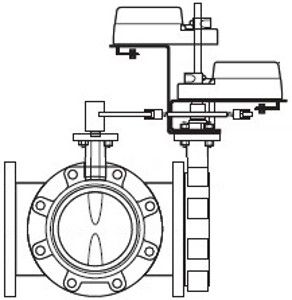

Schneider Electric VSUS-6200-E25D-L-16

SKU: CS4809190MPN: VSUS-6200-E25D-L-16

VB: 6 in, 2W, BFV, FLG, Under, FE, 1850 cv, 50 PSI, Act (BRY-NR-2224-541+BRY-NR-2224-542): Elec, Prop, NSR, 24 VAC/VDC, TB, 210 in-lb, SPDT, Dual act

Schneider Electric VFF-6200-E25D-L-14, VFFS-6200-E25D-L-14, VFU-6200-E25D-L-16, VFUS-6200-E25D-L-16, VSF-6200-E25D-L-14, VSFS-6200-E25D-L-14, VSU-6200-E25D-L-16, VSUS-6200-E25D-L-16
$1,280.49
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 6 in
  • Configuration: 2-Way
  • Type: Butterfly
  • Connection: Flanged
  • Body Style: Lug
  • Disc Shape: Undercut
  • Material Disc: Ductile Iron - Nylon 11 Coated
  • Flow Coefficient: 1850 cv
  • Close-Off Pressure: 50 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 24 VAC/VDC
  • Leads and Connections: Terminal Block
  • Torque: 210 in-lb
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 2 SPDT
  • Additional Features: Dual actuator
  • Protection Rating: NEMA 2

Assembly Components:

  • Valve Body: VBU-6200-0-L-16
  • Valve Linkage: Included with assembly
  • Actuator: BRY-NR-2224-541+BRY-NR-2224-542

Product Alert: Not for use with steam.

Attributes

Us Rated Supply Voltage 24 V AC/DC
Actuator rotary
Ambient Air Temperature For Operation -20-50 °C
Analogue Input Range 0…10 V DC 4…20 mA DC
Body Material polyester coated cast iron
Control Type automatic reset
Ip Degree Of Protection IP11
Operating Fluid Temperature -40-121 °C
Product Destination butterfly valves
Product Or Component Type valve-actuator assembly
Seat Leakage Port A: Class V
Seat Material Port A: EPDM (ethylene propylene diene monomer) Port B: EPDM (ethylene propylene diene monomer)
Switch Function 2 SPDT
Targeted Region North America.
Taxoclass Id PTC_D54046_XXX

Specifications

SKUCS4809190
MPNVSUS-6200-E25D-L-16
