All ProductsSchneider Electric

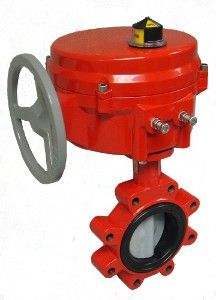

Schneider Electric VSFS-630C-E12-L-12

SKU: CS4809151MPN: VSFS-630C-E12-L-12

VB: 2-½ in, 3W Mix/Div, BFV, FLG, Full, FE, 282 cv, 175 PSI, Act (BRY-S70-120-0061-SV): Elec, Prop, NSR, 120 VAC, TB, 600 in-lb, SPDT, HTR

Schneider Electric VAFS-630C-E10-L-11, VAFS-630C-E10-L-12, VAFS-630C-E10-L-13, VAFS-630C-E10-L-14, VAFS-630C-E10-L-15, VAFS-630C-E20-L-16, VAFS-630C-E30-L-17, VAFS-630C-E50-L-18, VAFS-630C-E60-L-19, VAFS-630C-F10-L-11, VAFS-630C-F10-L-12, VAFS-630C-F10-L-13, VAFS-630C-F10-L-14, VAFS-630C-F10-L-15, VAFS-630C-F20-L-14
$3,249.56
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 2-½ in
  • Configuration: 3-Way Mixing/Diverting
  • Type: Butterfly
  • Connection: Flanged
  • Body Style: Lug
  • Disc Shape: Full
  • Material Disc: Ductile Iron - Nylon 11 Coated
  • Flow Coefficient: 282 cv
  • Close-Off Pressure: 175 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 120 VAC
  • Leads and Connections: Terminal Block
  • Torque: 600 in-lb
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 2 SPDT
  • Additional Features: Heater
  • Protection Rating: NEMA 4

Assembly Components:

  • Valve Body: VBF-6301-0-L-12
  • Valve Linkage: Included with assembly
  • Actuator: BRY-S70-120-0061-SV

Product Alert: Not for use with steam.

Attributes

Actuator rotary
Ambient Air Temperature For Operation -40-65.5 °C
Body Material polyester coated cast iron
Control Type automatic reset
Flow Pattern Nsr Config 1, Main valve A Closed Links to C Open##No##3##Yes
Ip Degree Of Protection IP56
Operating Fluid Temperature -40-121 °C
Product Destination butterfly valves
Product Or Component Type valve-actuator assembly
Seat Leakage Port A: Class V
Seat Material Port A: EPDM (ethylene propylene diene monomer) Port B: EPDM (ethylene propylene diene monomer)
Switch Function 2 SPDT
Targeted Region North America.
Taxoclass Id PTC_D54046_XXX

Specifications

SKUCS4809151
MPNVSFS-630C-E12-L-12
