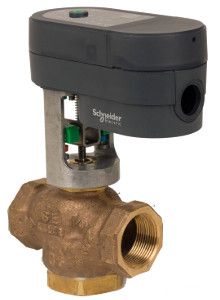

Schneider Electric VS-7313-110-4-06

SKU: CS4809038MPN: VS-7313-110-4-06

VB: ¾ in, 3W Mix, Globe, STR, NPT, BR, 7.5 cv, 157 PSI, Act (MG350V-24M): Elec, Mod, NSR, 24 VAC, 78 lbf, Linear, N2

Schneider Electric VF-7313-110-4-02, VF-7313-110-4-04, VF-7313-110-4-06, VF-7313-110-4-08, VF-7313-110-4-09, VF-7313-112-4-02, VF-7313-112-4-04, VF-7313-112-4-06, VF-7313-112-4-08, VF-7313-112-4-09, VS-7313-110-4-02, VS-7313-110-4-04, VS-7313-110-4-06, VS-7313-110-4-08, VS-7313-110-4-09
$570.83
Unit
Available on backorder
remove
add

Documents

Product Details

Valve Assembly:

  • Body Size: ¾ in
  • Configuration: 3-Way Mixing
  • Type: Globe
  • Body Pattern: Straightway
  • Connection: NPT
  • Stem Flow Action: Stem up flow B to AB
  • Material Trim: Brass
  • Flow Coefficient: 7.5 cv
  • Close-Off Pressure: 157 PSI
  • Actuator Type: Electric
  • Control Signal: Modulating
  • Control Signal Range: 0 to 10 VDC, 2 to 10 VDC
  • Loss of Power Position: Non-Spring Return
  • Power Input Voltage: 24 VAC, 20 to 24 VDC
  • Force: 78 lbf
  • Mechanical Movement: Linear
  • Additional Features: LED Status Indicator
  • Protection Rating: NEMA 2

Assembly Components:

  • Valve Body: VB-7313-0-4-06
  • Actuator: MF350V-24MP
  • Actuator Range: SmartX Actuator
  • Actuator Comment: Field selectable. The 2 to 10 VDC output signal range also includes an alarm signal
  • Linkage: Integral linkage

Attributes

Us Rated Supply Voltage 24 V AC
Actuator linear
Ambient Air Temperature For Operation -5-55 °C
Ambient Air Temperature For Storage -40-70 °C
Analogue Input Range 0…10 V DC
Body Material bronze
Control Type automatic reset
Current Consumption 7.2 A
Force Lbf 78 lbf
Force N 347 N
Hold In Power Consumption In Va 1.2-1.2 VA AC
Ip Degree Of Protection IP11
Material polycarbonate: housing
Operating Fluid Temperature -7-138 °C
Power Consumption In Va 7.2 VA AC
Product Destination globe valve
Product Or Component Type valve-actuator assembly
Relative Humidity 5-95 % non-condensing
Seat Leakage Port A: Class IV (0.01 %) Port A: Class V Port B: Class III (0.1 %)
Seat Material Port A: bronze Port B: bronze
Seating Seal Material Port B:metal to metal PTFE (polytetrafluoroethylene)
Stroke Running Time 102 s
Switch Function No
Targeted Region North America.
Taxoclass Id PTC_D54038_XXX

Specifications

SKUCS4809038
MPNVS-7313-110-4-06
