Schneider Electric VS-7263-537-4-09

SKU: CS4808983MPN: VS-7263-537-4-09

SmartX, Globe Valve Assembly, 1-¼ in, 2-Way, Stem Up Close, 20 cv, MS40-7043-501 Spring Return Proportional Actuator

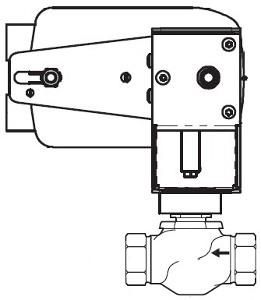

Schneider Electric VS-7223-537-4-01, VS-7223-537-4-02, VS-7223-537-4-03, VS-7223-537-4-04, VS-7223-537-4-05, VS-7223-537-4-06, VS-7263-537-4-09, VS-7263-537-4-10, VS-7263-537-4-39
$905.02
Unit
Available on backorder
remove
add

Product Details

Valve Assembly:

  • Body Size: 1-¼ in
  • Configuration: 2-Way
  • Type: Globe
  • Body Pattern: Straightway
  • Connection: NPT
  • Stem Flow Action: Stem up A closed
  • Material Trim: Stainless Steel
  • Flow Coefficient: 20 cv
  • Close-Off Pressure: 75 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Torque: 35 in-lb
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 2

Assembly Components:

  • Valve Body: VB-7263-0-4-09
  • Valve Range: Venta
  • Valve Linkage: AV-611
  • Actuator: MS40-7043-501
  • Actuator Range: SmartX Actuator

Attributes

Us Rated Supply Voltage 22…30 V DC 24 V AC/DC
Actuator rotary
Actuator Rotation 95 °
Ambient Air Temperature For Operation -30-60 °C
Ambient Air Temperature For Storage -40-71 °C
Analogue Input Range 2…10 V DC 4…20 mA DC
Body Material bronze
Control Type manual override with 5/32 allen wrench
Electrical Insulation Class class II
Motor Type brushless DC motor
Operating Fluid Temperature -7-171 °C
Product Destination dampers globe valve
Product Or Component Type valve-actuator assembly
Relative Humidity 5-95 % non-condensing
Saturated Steam Temperature -7-171 °C
Satured Steam Inlet Pressure 100 psi
Seat Leakage Port A: Class IV (0.01 %) Port A: Class V
Seat Material Port A: stainless steel 316
Seating Seal Material PTFE (polytetrafluoroethylene)
Switch Function 1 SPDT
Targeted Region North America.
Taxoclass Id PTC_D54039_XXX

Specifications

SKUCS4808983
MPNVS-7263-537-4-09
