Schneider Electric SLPWXX2

Name: Schneider Electric SLPWXX2
Brand: Schneider Electric
SKU: CS4806933
Price: 240.73 USD
Availability: OutOfStock

SKU: CS4806933MPN: SLPWXX2

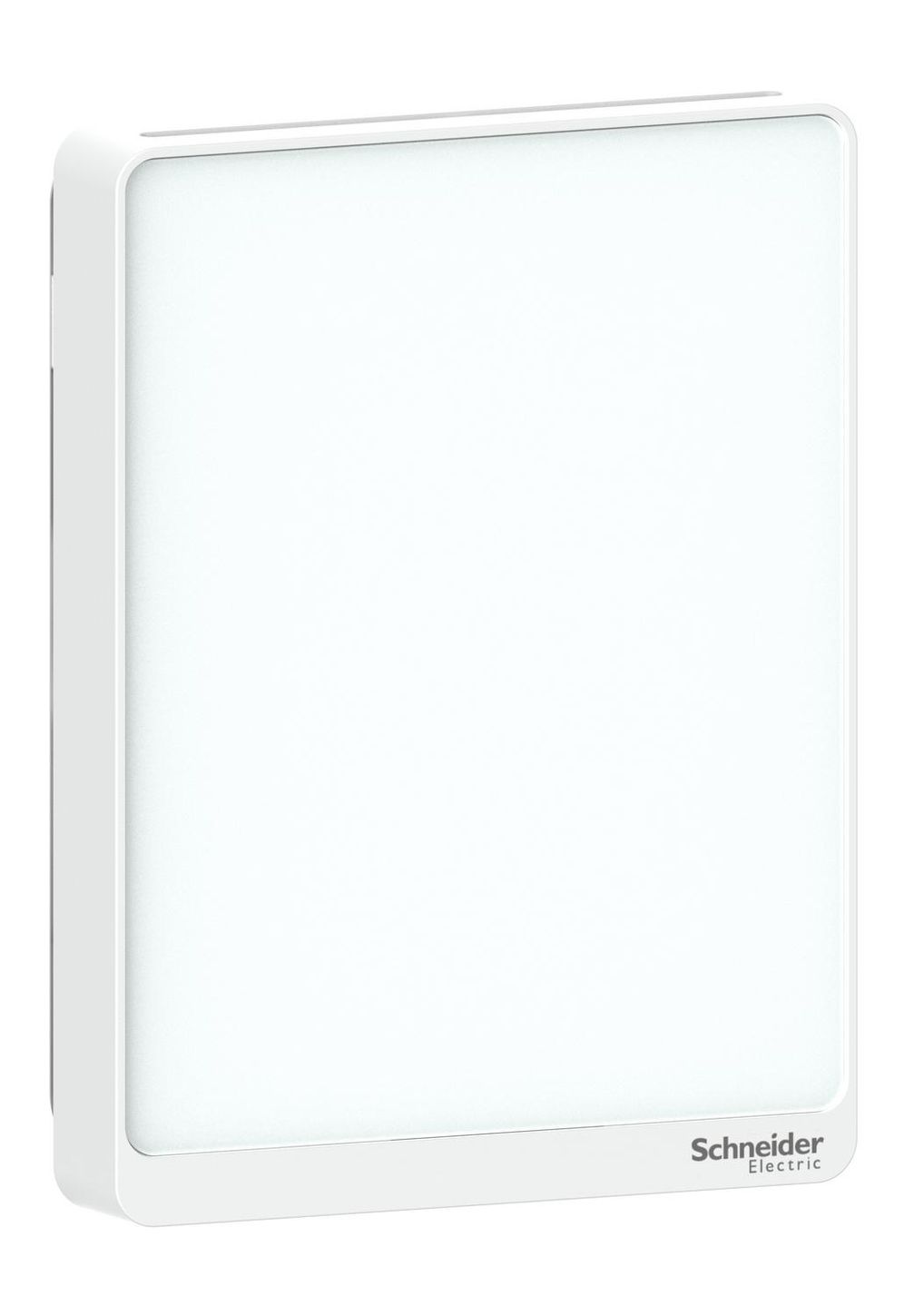

Sensor, SpaceLogic SLP Series, humidity, room, temperature, BACnet MSTP/Modbus, optimum white housing

Schneider Electric SLAWXC2, SLAWXCV2, SLAWXCVX, SLAWXCX, SLAWXX2, SLPWXC2, SLPWXCV2, SLPWXCVX, SLPWXCX, SLPWXX2, SLPWXXX

$240.73

Unit

Available on backorder

Quantity

remove

add

Product Details

The SpaceLogic SLP Series of wall humidity sensors for rooms is a flexible multisensor platform for use with BAS controllers designed to accept BACnet MSTP or Modbus outputs. Housings are available in Medium matte white and Optimum faces available in black and white. All housing types are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all SLP Series humidity sensors.

Attributes

Us Rated Supply Voltage	20…30 V DC 24 V AC
Us Rated Supply Voltage 1	20…30 V DC 24 V AC
Ambient Air Temperature For Operation	0-50 °C
Ambient Air Temperature For Operation 1	0-50 °C
Ambient Air Temperature For Operation 2	0-50 °C
Colour	white
Colour 1	white
Communication Port Protocol	BACnet# #Modbus
Communication Port Protocol 1	BACnet# #Modbus
Communication Port Protocol 2	BACnet# #Modbus
Communication Port Protocol 3	BACnet# #Modbus
Connections Terminals	screw terminal - 2 cable(s) (AWG 24…AWG 18)
Device Application	HVAC# #temperature control# #fan speed controller
Device Presentation	complete product
Display Type	without display
Display Type 1	without display
Function Available	with temperature sensor# #with humidity sensor
Humidity Setting Range	0-100 %
Humidity Setting Range 1	0-100 %
Hysteresis	0.015
Location	living space
Material	ABS (acrylonitrile butadiene-styrene)
Mounting Support	wall-mount
Network Frequency	50 Hz# #60 Hz
Product Name	SpaceLogic Room Unit
Product Or Component Type	sensor
Product Specific Application	humidity control
Range	SpaceLogic
Sensor Type	thin-film capacitive transmitter
Sensor Type 1	thin-film capacitive transmitter
Standards	FCC part 15 class B UL 916
Standards 1	FCC part 15 class B UL 916
Standards 2	FCC part 15 class B UL 916
Surface Finish	glossy
Temperature Setting Range	10-35 °C# #0-50 °C
Temperature Setting Range 1	10-35 °C# #0-50 °C
Type Of Measurement	humidity# #temperature
