Schneider Electric HW2TA2A

Name: Schneider Electric HW2TA2A
Brand: Schneider Electric
SKU: CS4806655
Availability: OutOfStock

SKU: CS4806655MPN: HW2TA2A

Veris HW2 Series Humidity Sensor, Wall, Replaceable 2%, Color Touchscreen, Temperature Transmitter

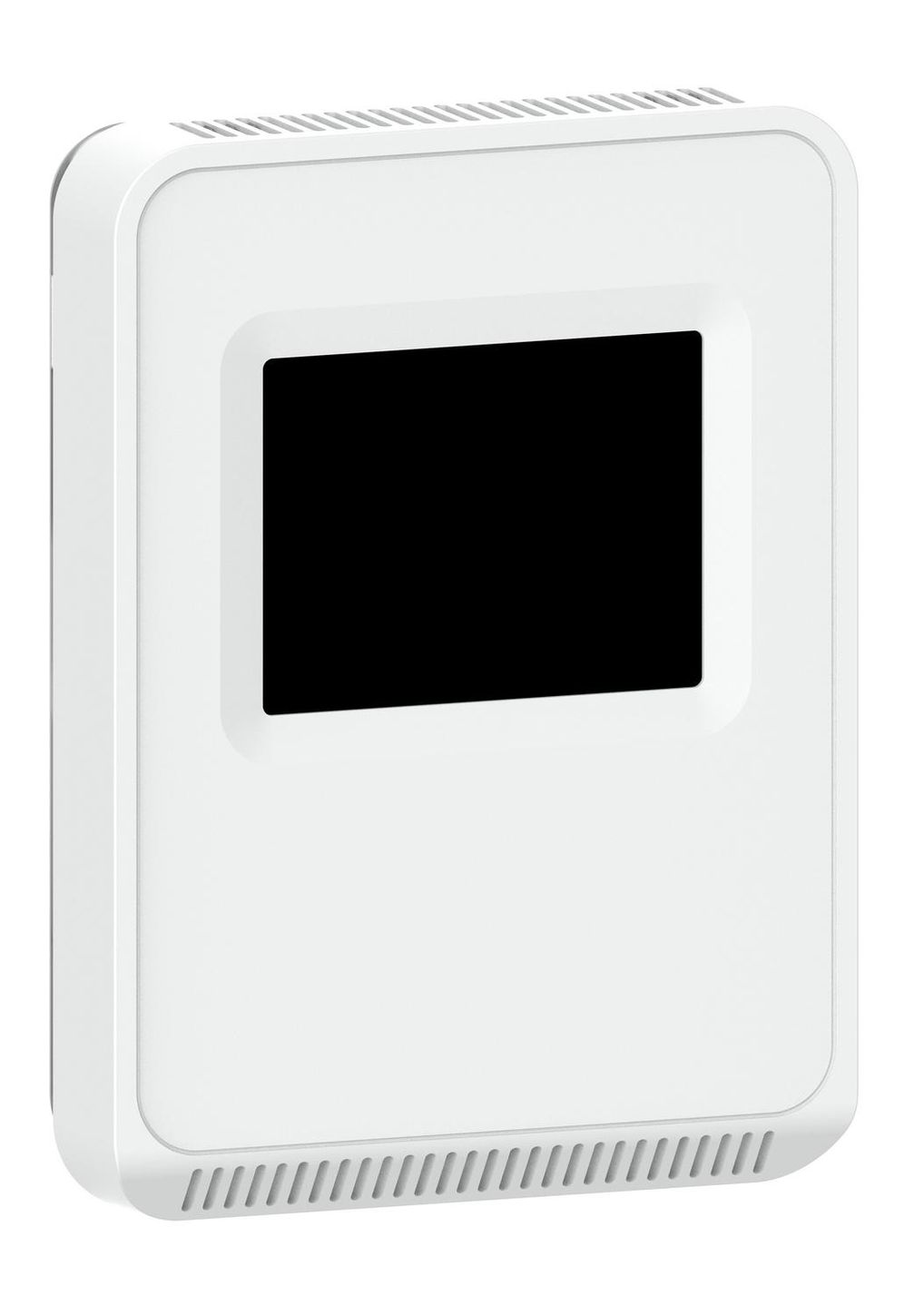

Schneider Electric CW2TA2A, CW2TA2AV, CW2TA2C, CW2TA2D, CW2TA2H, CW2TA2K, CW2TA2M, CW2TA2N, CW2TAXA, CW2TAXAV, CW2TAXC, CW2TAXD, CW2TAXH, CW2TAXK, CW2TAXM

Documents

Schneider Electric HW2LA2A, HW2LA2D, HW2LA2H, HW2LA2K, HW2LA2M, HW2LA2N, HW2TA2A, HW2TA2D, HW2TA2H, HW2TA2K, HW2TA2M, HW2TA2N, HW2XA2A, HW2XA2C, HW2XA2D Manual

Product Details

The Veris HW2 Series of humidity sensors for rooms is a flexible multi-sensor platform for use with BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc or 0 to 10Vdc outputs. HW2 Series sensors are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Series humidity sensors.

Attributes

Us Rated Supply Voltage	20…30 V DC 24 V AC
Us Rated Supply Voltage 1	20…30 V DC 24 V AC
Ambient Air Temperature For Operation	0-50 °C
Ambient Air Temperature For Operation 1	0-50 °C
Ambient Air Temperature For Operation 2	0-50 °C
Colour	white
Colour 1	white
Communication Network Type	wired
Communication Network Type 1	wired
Connections Terminals	screw terminal - 2 cable(s) (AWG 24…AWG 18)
Control Type	switch, for temperature or fan speed setpoint tactile
Device Application	HVAC# #temperature control# #fan speed controller
Device Presentation	complete product
Display Resolution	240 x 300 pixels
Display Size	2.4 inch
Display Type	colour touchscreen
Display Type 1	colour touchscreen
Function Available	with temperature sensor# #with humidity sensor
Humidity Setting Range	0-100 %
Humidity Setting Range 1	0-100 %
Hysteresis	0.015
Information Displayed	temperature# #temperature set point# #menu-driven user interface# #CO2
Location	living space
Material	ABS (acrylonitrile butadiene-styrene)
Mounting Support	wall-mount
Network Frequency	50 Hz# #60 Hz
Number Of Outputs	1 configurable 1 fan
Output Type	analog
Output Type 1	analog
Output Type 2	analog
Output Voltage	0…10 V for configurable analog output 0…10 V for fan speed 0…5 V for configurable analog output
Output Voltage 1	0…10 V for configurable analog output 0…10 V for fan speed 0…5 V for configurable analog output
Product Name	SpaceLogic Room Unit
Product Or Component Type	sensor
Product Specific Application	humidity control
Range	SpaceLogic
Sensor Type	thin-film capacitive transmitter
Sensor Type 1	thin-film capacitive transmitter
Standards	FCC part 15 class B UL 916
Standards 1	FCC part 15 class B UL 916
Standards 2	FCC part 15 class B UL 916
Surface Finish	matt
Temperature Setting Range	10-35 °C# #0-50 °C
Temperature Setting Range 1	10-35 °C# #0-50 °C
Type Of Measurement	humidity# #temperature
