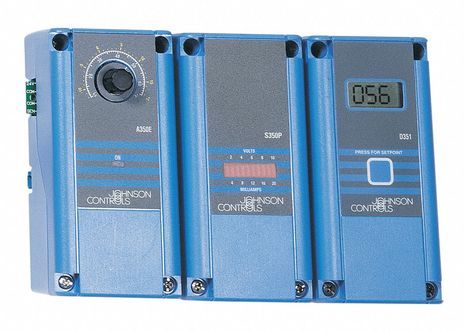

Johnson Controls A350RS-1C

TEMP RESET CONTROL; DUAL SCALE; MASTER RESET SETPOINT 40 TO 70 F (4 TO 21 C); RR 1:5-3:1

SPST Temperature Reset Control, Dual Scale with Master Reset Sensor

Features:

• Designed to raise or lower temperature of supply water or air based on proportionate rise or drop in temperature at the master sensor
• Use as a stand alone device or with plug-in accessory modules
• A99BC-25C Master and A99BB-300C Supply sensors included
• Adjustable master reset set-point (40°F to 70°F), minimum relay on-time selection (jumper selectable: OFF, 1, 2 or 3 minute), adjustable minimum (50°F to 160°F) and maximum (160°F to 220°F) supply temperature and selectable warm weather shutdown temperature (jumper selectable: OFF, 60, 64, 68 or 72°F)
• Switch action: SPST, N.O.
