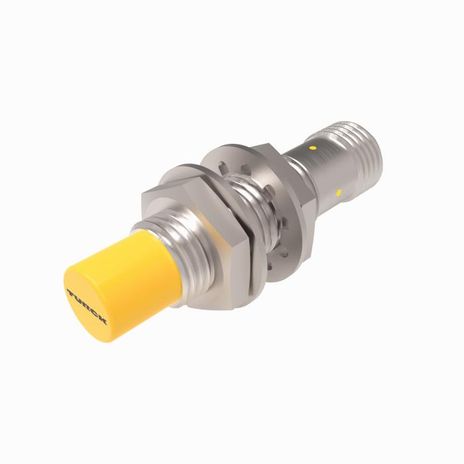

Turck NI10U-M12-AP6X-H1141
SKU: CS4757433MPN: NI10U-M12-AP6X-H1141Alternate Part #: 1634806UPC/EAN: 4047101128703
1634806 - UPROX, BARREL, DC, CON. M12
$125.93
UnitAvailable on backorder
Product Details
Inductive Sensor
With Extended Switching Distance
- M12 × 1 threaded barrel
- Chrome-plated brass
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- Integrated protection against predamping
- Little metal-free spaces
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |

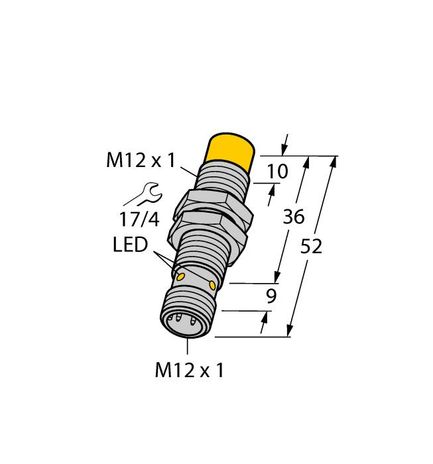

| Construction Size | M12 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, Chrome-plated |
| Mounting | Non-flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 10 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields |
| Switching Frequency | 1.0 kHz |
Specifications
| SKU | CS4757433 |
|---|---|
| MPN | NI10U-M12-AP6X-H1141 |
| Alternate Part # | 1634806 |
| UPC/EAN | 4047101128703 |
