Siemens 257-02035

Name: Siemens 257-02035
Brand: Siemens Building Technologies
SKU: CS46617
Price: 146.98 USD
Availability: InStock

SKU: CS46617MPN: 257-02035UPC/EAN: 804766012259

MT Series 2W Valve Assy, ANSI 250, NO, Mod Eq Pct, ½”, FxUM, 1 Cv, 3-8psi SR

$146.98

Unit

37 in stock

Quantity

remove

add

Product Details

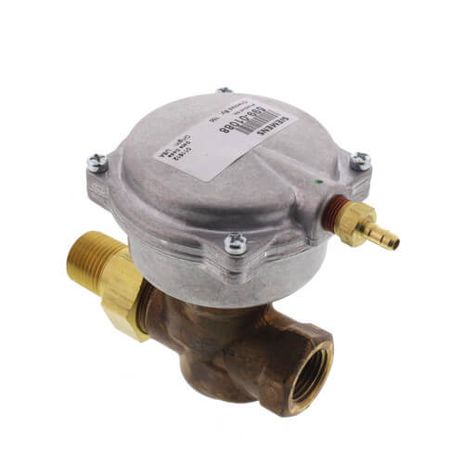

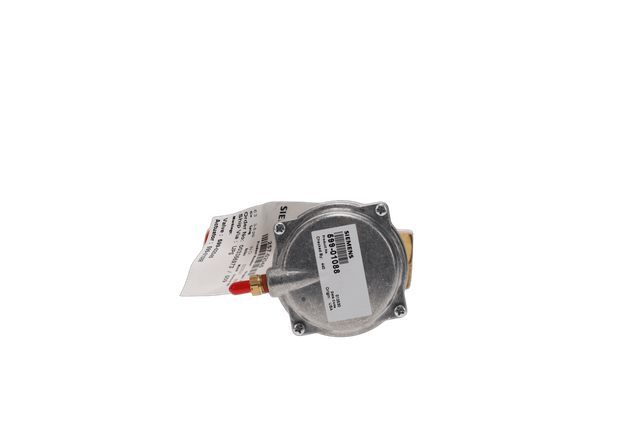

This Valve Assembly is a Powermite 599 MT Series, ANSI Class 250, 2-W, NO, Modified Eq Pct, 1 Cv, FxUM, ½”, Brass Body, Includes MT Series 2 In Pneumatic Actuator with 3-8 psi SR, Used for control of hot or chilled water for convectors

Attributes

Actuator Type	Pneumatic
Close Off Pressure	95 psi
End Connection	FxUM
Fail Safe	Yes
Flow Characteristic	Modified Equal-percentage
Flow Coefficient Cv	1.0000
Max Differential Pressure Liquid	25 psi
Max Differential Pressure Steam	15 psi
Max Inlet Pressure Absolute Liquid	400 psi
Max Inlet Pressure Absolute Steam	15 psi
Medium	Water;Water with anti-freeze
Medium Temperature	35…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	35 ºF
Normally Open Normally Closed	Normally Open
Operating Voltage	Pneumatic
Port Configuration	2-Way Normally open
Spring Range	3-8 psi
Trim Material	Brass
Valve Size	0.5 in
Valve Type	Two-way
