HVAC/RValve-Actuator AssembliesSiemens Building Technologies

Siemens 259-02030

Name: Siemens 259-02030
Brand: Siemens Building Technologies
SKU: CS463058
Price: 152.98 USD
Availability: InStock

SKU: CS463058MPN: 259-02030UPC/EAN: 804766012334

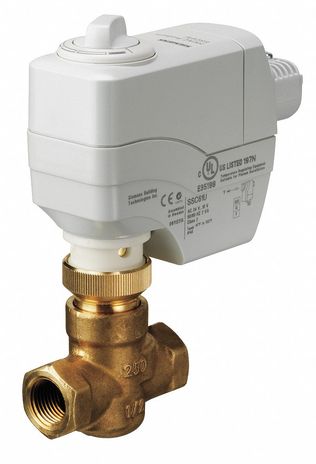

Valve assy NO ½” 0.4Cv, FxF Brass Trim Elect Act NSR float

Siemens Building Technologies 259-02030, 259-02036

$152.98

Unit

3 in stock

Quantity

remove

add

Product Details

This Powermite 599 MT Series Normally Open Valve Assembly features an electronic actuator with 24 volts AC operating voltage, floating control and Fail in-place. The assembly is ANSI Leakage Class IV, has a brass trim and a female to female connection. This assembly has a flow rate of 0.4 Cv, and a line size of ½”.

Attributes

Actuator Type	Electronic
Close Off Pressure	120 psi
Control Signal	Floating control
End Connection	FxF
Fail Safe	No
Flow Characteristic	Modified Equal-percentage
Flow Coefficient Cv	0.40000000596046
Max Differential Pressure Liquid	25 psi
Max Differential Pressure Steam	5 psi
Max Inlet Pressure Absolute Liquid	400 psi
Max Inlet Pressure Absolute Steam	5 psi
Medium	Water;Water with anti-freeze
Medium Temperature	35…250 ºF
Medium Temperature F Max	250 ºF
Medium Temperature F Min	35 ºF
Operating Voltage	24 VAC
Port Configuration	2-Way Normally open
Spring Return Function	Non-spring return functionality
Supply Voltage	24 VAC
Trim Material	Brass
Valve Size	0.5 in
Valve Type	Two-way
