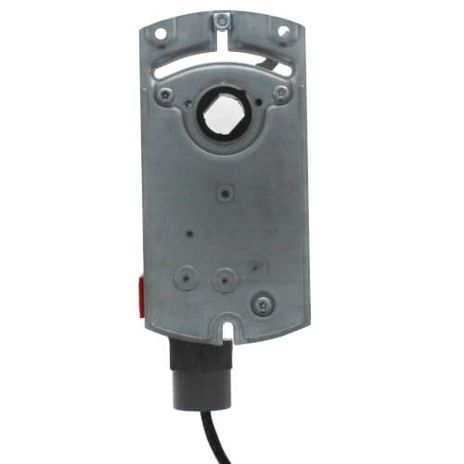

Siemens GEB161.1P
SKU: CS439881MPN: GEB161.1PUPC/EAN: 4047625005061
NSR 132 lb-in, 24Vac/dc, 0-10Vdc Control, 125s Run, Feedback, Plenum
$358.21
UnitAvailable on backorder
Product Details
OpenAir™ GEB Series Electric Damper Actuator, rotary, non-spring return, 132 lb-in (15 Nm), 24 Vac/dc, 0 to 10 Vdc control, 125 sec run time, plenum rated
Attributes
| Actuation Style | Rotary |
| Actuator Type | Non-spring return |
| Ambient Humidity Operation | 95 % r.h. |
| Ambient Temperature Operation | -32…55 °C; -25…130 ºF |
| Auxiliary Switch | No |
| Connection Cable | 18 AWG |
| Control Or Fire Smoke Type | Control Damper |
| Control Signal | 0…10Vdc / 2…10Vdc |
| Fail Safe | No |
| Frequency | 50/60 Hz |
| Material Housing | NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529 |
| Operating Voltage | 24…28.8 V24 V#AC/DC |
| Plenum Or Standard Rating | Plenum |
| Position Feedback | Yes |
| Positioning Time | 50 Hz:150 s;60 Hz:125 s |
| Power Consumption | Running: 5 VA / 4 W, Holding: 1 VA / 1 W |
| Supply Voltage | 24 VAC |
| Torque | 132 lb-in |
Specifications
| SKU | CS439881 |
|---|---|
| MPN | GEB161.1P |
| UPC/EAN | 4047625005061 |
