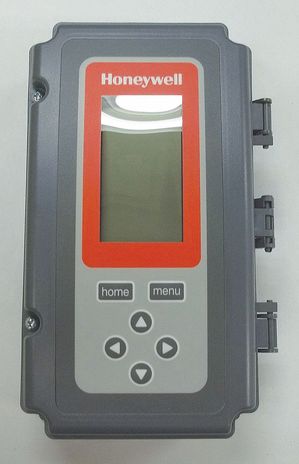

Honeywell T775M2030
SKU: CS424534MPN: T775M2030Alternate Part #: HW-T775M2030UPC/EAN: 085267299244
ELECTRONIC REMOTE TEMPERATURE
$934.81
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
ELECTRONIC REMOTE TEMPERATURE
Attributes
| Application | Electronic Remote Temperature |
| Dimensions in | 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep |
| Width | 4-13/32” |
| Height | 8.15625 |
| Depth | 2-15/16” |
| Voltage | 24 Vac or 120/240 Vac |
| Frequency | 50 Hz; 60 Hz |
| Temperature Range F | -40° to 248°F |
| Operating Temperature Range F | Ambient– -40 F to 140 F @ 60 Hz; -40 F to 125 F @ 50 Hz |
| UL | Approved |
| Accuracy | ±1° at 77°F |
| Accuracy F | ±1 F at 77 F |
| Ambient Operating Temperature | -40°F to 140°F @ 60 Hz |
| Analog Output | 2,Electronic Series 90; 4-20 mA; 0-10 Vdc; 2-10 Vdc |
| Bulb Size | ¼” x 2” |
| Bulb Size in | ¼ in. diameter x 2 in. long |
| Contact Ratings 120v | 9.8 AFL |
| Contact Ratings 240v | ½ hp |
| Contact Ratings 24v | 10.0 A Resistive |
| Features | NEMA-1 Enclosure |
| Hertz | 50 |
| Maximum distance to sensor ft | Up to 1,000 ft |
| Output | Relay |
| Relay Outputs | 4 SPDT |
| Sensor Element | 1097 ohms PTC at 77 F |
| Sensor Inputs | 2 |
| Sensor Type | 1097 ohm @ 77 F PTC |
| Sensors Included | 50021579-001 (1) |
| Setpoint Temperature Range F | -40 F to 248 F |
| Throttling Range F | 1 F to 150 F |
| Type | Modulating |
Specifications
| SKU | CS424534 |
|---|---|
| MPN | T775M2030 |
| Alternate Part # | HW-T775M2030 |
| UPC/EAN | 085267299244 |
You may also like
Honeywell LP920A1039
$1,458.67Unit
Honeywell T775U2006
$496.89Unit
Resideo T775M2006
$286.92Unit
Honeywell T775B2024
$531.50Unit
Honeywell T775L2007
$649.75Unit

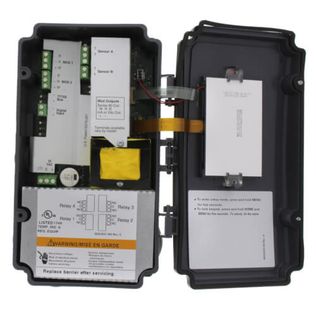

Honeywell T775M2014
