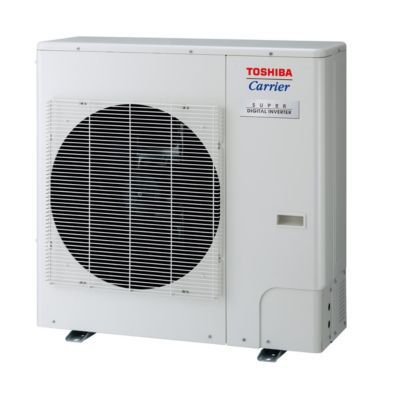

Carrier RAV SP240AT2 UL

Carrier® Toshiba Ductless 24000 Btuh Heat Pump Single Zone Inverter 208/230-1

RAV-SP240AT2-UL

RAV \= Model Series

- \= Not Defined

SP \= Super Digital Inverter

24 \= 24,000 Btuh Cooling Size

0 \= Series Number

A \= Outdoor Unit Type

T \= Inverter System

2 \= 208/230-1-60 Power Supply

- \= Not Defined

UL \= U.S. Model Packaging

Ductless split systems are a matched combination of an outdoor condensing unit and an indoor fan coil unit connected only by refrigerant tubing and wires.

The RAVAT condensing unit is matched with the RAVUT in-ceiling cassette fan coil, the RAVKR high wall fan coil, or the RAVCT underceiling fan coil.

RAVAT Features When Matched with RAVUT

• Up to 21.0 SEER, up to 11.9 HSPF
• Digital inverter compressor technology (18-42K BTUH)
• Line length up to 245 ft.
• Optional fresh air intake
• Built-in condensate pump
• Independent louver control (fixed or swing)
• Optional wired or wireless controller
• Power saving mode
• Quiet operation
• Diagnostics
• Low-ambient cooling down to 5° F
• Filter maintenance indicator
• Clean mode

RAVAT Features When Matched With RAVKR

• Up to 19.5 SEER, up to 9.8 HSPF
• Digital inverter compressor technology (18-24K BTUH)
• Line lengths up 165 ft.
• Wireless controller included
• Auto louver mode
• Optional wired controller
• Turbo mode
• Quiet operation
• Diagnostics
• Low-ambient cooling down to 5° F
• Filter maintenance indicator
• Clean mode

RAVAT Features When Matched With RAVCT

• Up to 20.6 SEER, up to 11.0 HSPF
• Digital inverter compressor technology (18-42K BTUH)
• Slim-line design
• Optional condensate pump
• Optional wired or wireless controller
• Low-ambient cooling down to 5° F
• Auto louver mode
• Optional fresh air intake
• Power saving mode
• Quiet operation
• Diagnostics
• Filter maintenance indicator
• Clean mode
