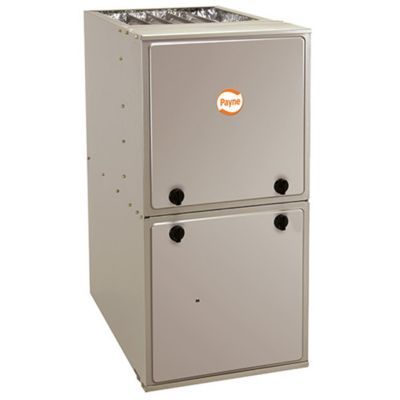

Carrier PG92ESAA60080C

Payne® - 92% AFUE Single-Stage 80000 Btuh ECM Condensing Gas Furnace

Payne® - 92% AFUE Single-Stage 80000 Btuh ECM Condensing Gas Furnace

The PG92ESA Multipoise Condensing Gas Furnace features single-stage gas valve and ECM blower motor. This furnace provides electrical efficiency with a fixed-speeds, constant torque (FCT) ECM blower motor. With an Annual Fuel Utilization Efficiency (AFUE) of 92.1%, the single-stage gas furnace provides added savings over standard, non-condensing gas furnaces. This Gas Furnace features 4-way multipoise installation flexibility, and is available in eight model sizes. The PG92ESA can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. Low NOx units are designed for California installations and meet 40 ng/J NOx emissions. Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement. All sizes are design certified in Canada. All sizes are design certified for use in Manufactured Housing (Mobile Home) applications when used with factory-approved MH accessory kit.

PERFORMANCE

• Fixed-speeds, constant torque (FCT) ECM blower motor for electrically efficient operation all year long in heating, cooling and continuous fan operation
• Single-speed inducer motor, and single-stage gas valve
• Silicon Nitride Robust Hot Surface Igniter.
• Adjustable blower speed for heating and cooling.
• Aluminized-steel primary heat exchanger.
• Stainless-steel condensing secondary heat exchanger.

INSTALLATION FLEXIBILITY

• 4-way multipoise design for upflow, downflow or horizontal installation, with unique vent elbow for 12 different venting options, including optional venting through-the-cabinet downflow venting capability.
• Factory-configured ready for upflow applications.
• Ideal height 35” (889 mm) cabinet: short enough for taller coils, but still allows enough room for service.
• Direct-vent/sealed combustion, single-pipe venting or ventilated combustion air.

APPLICATIONS

• Approved for Manufactured Housing/Mobile Home applications with MH accessory kit.
• Propane convertible with gas conversion accessory.

CERTIFICATIONS

• All sizes meet ENERGY STAR® South regional standards.
• Cabinet air leakage less than 2.0% at 1.0 in. W.C. and cabinet air leakage less than 1.4% at 0.5 in. W.C. when tested in accordance with ASHRAE standard 193.
• All sizes meet 40 ng/J NOx emissions. Can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
